Through hole slip ring

H Through Hole Slip Ring Series(through Bore Slip Ring)

Through hole slip ring also called hollow slip ring with centre hole. it could be applied to any devices where requires to transmit power and signals when need 360° roating

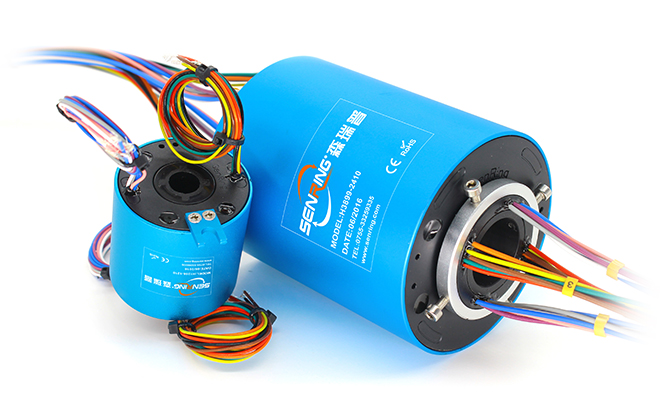

  1. H Through Hole Slip Ring Series(through Bore Slip Ring) image 1H Through Hole Slip Ring Series(through Bore Slip Ring) image 1

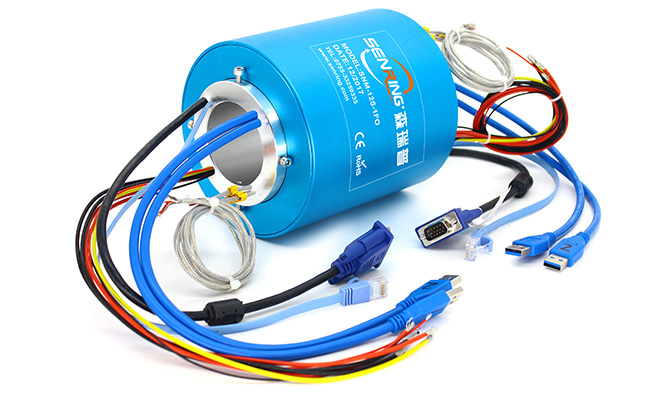

  2. H Through Hole Slip Ring Series(through Bore Slip Ring) image 2H Through Hole Slip Ring Series(through Bore Slip Ring) image 2

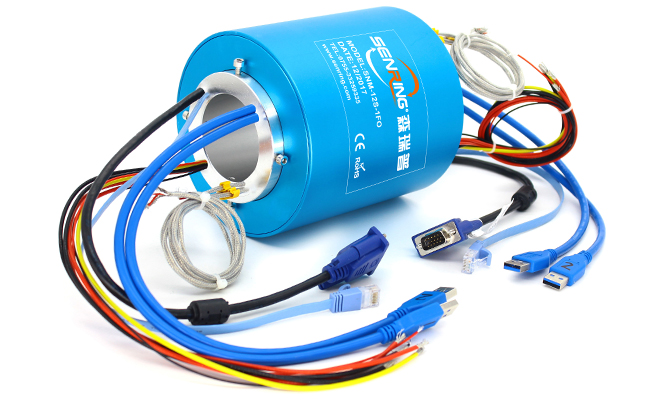

  3. H Through Hole Slip Ring Series(through Bore Slip Ring) image 3H Through Hole Slip Ring Series(through Bore Slip Ring) image 3
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Metal housing for better protection;
Integrated structure design, easy installation.
Hole size from 3mm to 300mm optional;
Standard current: 0~20A,Standard voltage: 0~600VAC/VDC;
Circuits No.: 0~300 circuits optional;
Customizations acceptable for circuits no. , current& voltage based on standard models;
Part no. description
  H   IDOD - F - XA - XS - C
ID: ID ;OD: OD ;
  • example: H0317: ID :3mm,OD:17mm
  • H3899F: ID 38.1mm,OD 99mm,flange installation
  • H0522: ID 5mm,OD 22mm
  • H38119: ID 38.1mm,OD 119mm
  • H0724: ID 7mm,OD 24.8mm
  • H4086: ID 40mm,OD 86mm
  • H0729: ID 7mm,OD 29mm
  • H50119: ID 50mm,OD 119mm
  • H0835: ID 8mm,OD 35mm
  • H50119F: ID 50mm OD 119mm,flange installation
  • H1235: ID 12mm,OD 35mm
  • H60119: ID 60mm,OD 119mm
  • H1242: ID 12.7mm,OD 42mm
  • H50130: ID 50mm,OD 130mm
  • H1532: ID 15mm,OD 32.8mm
  • H60130: ID 60mm,OD 130mm
  • H2042: ID 20mm OD 42mm
  • H70140: ID 70mm,OD 140mm
  • H1256: ID 12.7mm,OD 56mm
  • H70158: ID 70mm,OD 158mm
  • H1256F: ID 12.7mm,OD 56mm,flange installation
  • H80158: ID 80mm,OD 158mm
  • H1286: ID 12.8mm,OD 86mm
  • H90185: ID 90mm,OD 185mm
  • H2056: ID 20mm,OD 56mm
  • H100185: ID 100mm,OD 185mm
  • H2056F: ID 20mm,OD 56mm,flange installation
  • H120215: ID 120mm,OD 215mm
  • H2069: ID 20mm,OD 69mm
  • H150248: ID 150mm,OD 248mm
  • H2578: ID 25.4mm,OD 78mm
  • H180298: ID 180mm,OD 298mm
  • H2586: ID 25.4mm,OD 86mm
  • H200320: ID 200mm,OD 320mm
  • H2586F: ID 25.4mm OD 86mm,flange installation
  • H250396: ID 250mm,OD 398mm
  • H3099: ID 30mm,OD 99mm
  • H300430: ID 300mm,OD 476mm
  • H3899: ID 38.1mm,OD 99mm
  •
Check for more slip- ringspecifications
X: power circuits,A: current
example: 0610: 6 wires 10A
C: Product grade table
C: standard
D: industrial
H: high quality
H: through bore slip ring
F: flange installation
example: H1556F,H2056F
X: signal circuits ,S: signal ;
example: 06S: 6 wires 2A signal
For example

“H3899-12S”: H means through hole slip ring ,3899 means hole size 38.1mm,OD 99mm,12S means 12 wires signal ;

“H50119-0610-06S”: H means through hole slip ring ,50119 means hole size 50mm,OD 119mm,0610 means 6 wires 10A,06S means 6 wires signal ;

“H2586F-0610-D”: H means through hole slip ring ,2586F means hole size 25.4mm,OD 86mm,flange installation,0610 means 6 wires 10A,D means industrial grade。

model list

Mini size(hole size 3 ∼ 8mm)

model # hole size (mm) OD (mm) circuits no. PDF
3 16 2~8
5 22 2~12
7 24.8 2~12
7 29 2~12
8 35 2~12


Small size(12.7 ∼ 20mm)

model # hole size (mm) OD (mm) circuits no. PDF
12 35 2~12
12.7 42 2~12
12.7 56 2~48
12.7 56 2~48
12.7 86 2~96
15 32.8 2~24
20 42 2~12
20 56 2~12
20 56 2~12
20 69 2~48


Medium size(25.4 ∼ 90mm)

model # hole size (mm) OD (mm) circuits no. PDF
25.4 78 2~72
25.4 86 2~72
25.4 86 2~72
25.4 119 2~144
30 99 2~72
38.1 99 2~72
38.1 99 2~72
38.1 119 2~108
40 86 2~48
50 119 2~108
50 119 2~108
50 130 2~144
60 119 2~72
60 130 2~108
70 140 2~108
70 158 2~108
80 158 2~108
90 185 2~108


Larger size(100 ∼ 300mm)

model # hole size (mm) OD (mm) circuits no. PDF
100 185 2~108
120 215 2~108
150 245 2~108
180 298 2~108
200 320 2~108
250 396 2~108
300 430 2~108
Color code of Lead Wire
ring no. color ring no. color
1 black 13 WHT/BLK
2 brown 14 WHT/BRN
3 red 15 WHT/RED
4 orange 16 WHT/ORG
5 yellow 17 WHT/YEL
6 green 18 WHT/GRN
7 blue 19 WHT/BLU
8 purple 20 WHT/PUR
9 grey 21 WHT/GRY
10 white 22 BLK/RED
11 pink 23 BLK/BRN
12 lightblue 24 transparent
