P Series PCB Slip Rings(Min. Thickness 6.5mm)

SenRing P series PCB slip ring,a kind of ultrathin slip ring, designed specifically for devices with limited height space, need to extend horizontal space,thickness:6mm,min thickness:5mm.The typical characteristics are small thickness and large OD compared conventional SenRing slip ring. Precious metal brush has the advantages of high stability, low torque, low loss ,no maintenance, low electrical noise and long working life,etc.Widely used in a variety of occasions with small installation space.

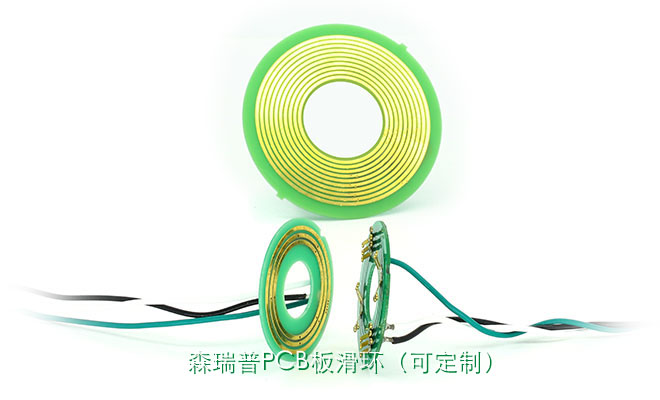

  1. PCB slip ringPCB slip ring

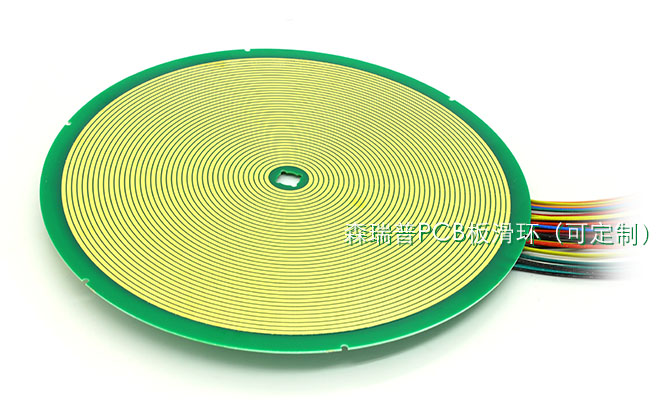

  2. PCB slip ringPCB slip ring

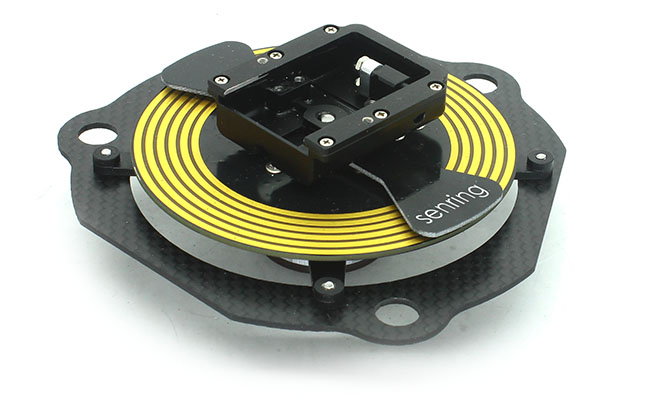

  3. UAV special PCB slip ringUAV special PCB slip ring
Features
thickness:6mm,min thickness:5mm;
Adopting fiber brush technology make sure reliable contact under very low friction ;
Low contact resistance, no friction debris;
Can be combined to transmit precision signal and supply power;
Precious metal brush ensure high stability and reliability.
Part no. description
P hole size - power circuits - signal circuits - Product grade
P:PCB slip ring
Examples:
12:hole size: 12.7mm
25: hole size: 25.4mm
38:hole size: 38.1mm
50: hole size: 50mm
Examples:
0610:6 circuits@10A
1230:12 circuits@30A
Examples:
02S:2 circuits signal
@2A(5A options)
08S:08 circuits signal
@2A(5A options)
Examples:
C:standard
D:industrical
Examples

P012-0310:P012 means hole size 12.7mm series PCB slip ring,0310 means 3 circuits (10A each)current;

P025-1210-D:P025 means hole size 25.4mm series PCB slip ring ,1210 means 12 circuits(10A each)current,“D” means industrial grade;

P038-0810-04S:P038 means hole size 38.1 series PCB slip ring,0810 means 8 circuits(10A each)current, 04s means 4 circuits signal;

Model List
Model PDF hole size(mm) height
(thickness)
Rings
12.7 6 1∼12
25.4 6 1∼12
38.1 6 1∼12
50 6 1∼12

*If no standard models suitable , contact us for custom solutions,E-mail: info@senring.com senring.us@gmail.com

Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent
