USB Slip Ring

U Series USB 2.0 Slip Ring

USB slip ring specailly designed to transmit USB1.0/USB2.0 signals,with advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss.

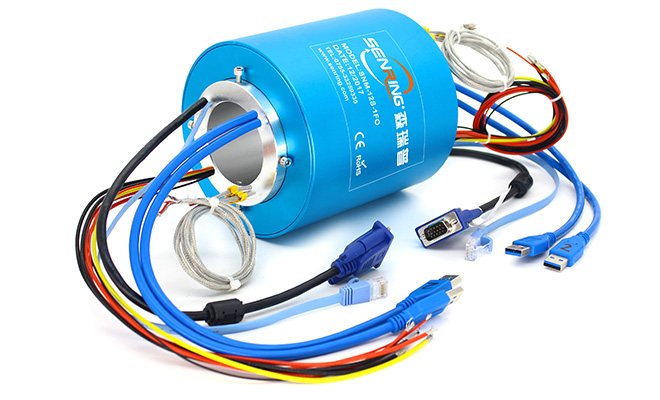

  1. U Series USB 2.0 Slip Ring image 1U Series USB 2.0 Slip Ring image 1

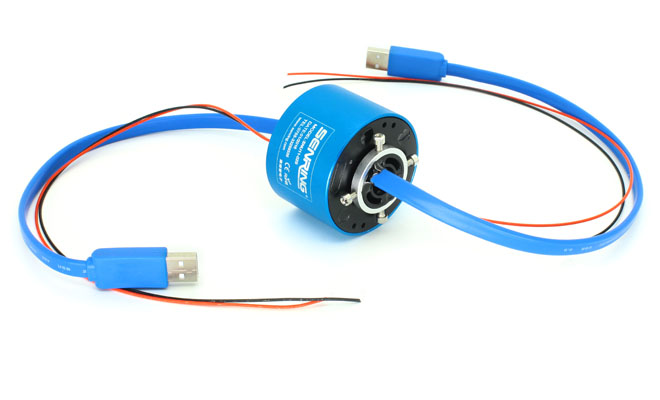

  2. U Series USB 2.0 Slip Ring image 2U Series USB 2.0 Slip Ring image 2
  3. U Series USB 2.0 Slip Ring image 3U Series USB 2.0 Slip Ring image 3
Features
Standard USB male/femal connectors
Standard USB wires connection
Max 9channels USB in one slip ring
can combine with power or pneumatic/hydraulic slip ring
Contact materials:precious metal +gold plating which ensures abrasion resistant and anti-Oxidant for long working life
Senring electronics has 70% USB slip rings are customized;
Part no. description
U - ID OD - USB channels no. - power circuits - signal circuits - Product grade
U:USB Slip Ring
Examples:
M0155:M means solid without hole,
OD:15.5mm
H1256:H means through hole,
ID:12.7mm,OD:56mm
H2586:H means through hole
ID:25.4mm,OD:86mm
H3899:H means through hole
ID:38.1mm,OD:99mm
H50119:H means through hole
ID:25.4mm,OD:119mm
Examples:
01:1 set of USB cable
02:2 set of USB cable
Examples:
0610:6 [email protected]
1210:12 [email protected]
Examples:
06S:6 circuits [email protected](5A options)
12S:12 circuits [email protected](5A options)
Examples:
C:standard
D:industrical
For example

UM0155-01-06:U means USB3.0 Slip Ring,M means solid without hole,OD 15.5mm,1 set of USB cable,6 circuits signal;

UH1256-01-0310-04S:USB2.0 Slip Ring,H means through hole,ID 12.7mm,OD 56mm,1 set of USB cable,0310:3 [email protected],04S:4 circuits [email protected](5A options)

model list
Model PDF through hole size OD USB channels no. power/signal circuits no.
solid 15.5mm 1∼2(USB3.0) 1∼12
12.7mm 56mm 1 1∼24
12.7mm 56mm 2 1∼24
25.4mm 86mm 1 1∼48
25.4mm 86mm 2 1∼48
38.1mm 99mm 1 1∼56
38.1mm 99mm 2 1∼56
50mm 119mm 1 1∼72
50mm 119mm 2 1∼72
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent
