USB Slip Ring

UH50119-01 Series USB2.0 Signal Slip Ring

1 Channel USB2.0 wire +1~72 circuits power/signal;

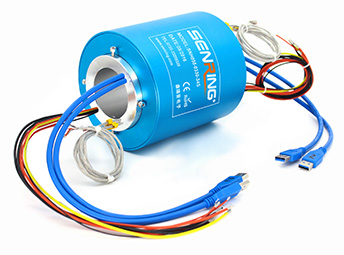

SENRINGSenRing UH50119-01 series 4 channels USB rotary joint,can transmit 4 channels USB2.0 signal when 360° rotating,can be combined to stable transmit 1~38 circuits power/signal as well as IEEE1394 and various of USB signals. UH50119-01 series 4 channel

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard USB male or female connector, can be customized;
Can stable transmit 4 channels USB2.0 signal;
Can be combined to transmit 1~38 circuits power/signal;
Hole size 50mm,OD 120mm;
Can be combined to transmit power and various signals of IEEE1394、Ethernet、USB2.0,etc.
Can be combined to work with power and hydraulic/pneumaic rotary unions;
Part no. description
uh50119-01 series UH50119-01 Series USB2.0 Signal Slip Ring slip ring description
Drawing
uh50119-01 series UH50119-01 Series USB2.0 Signal Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. USB channels no.
signal(2A) power(5A) power(10A) USB2.0 USB3.0
UH50119-01-02S200152
UH50119-01-0210020152
UH50119-01-0420004176
UH50119-01-08S800176
UH50119-01-0810080176
UH50119-01-0210-06S620176
UH50119-01-0410-04S440176
UH50119-01-14S14001100
UH50119-01-141001401100
UH50119-01-0410-10S10401100
UH50119-01-0810-06S6801100
UH50119-01-20S20001124
UH50119-01-201002001124
UH50119-01-26S26001148
UH50119-01-38S38001196
Technical Specification of uh50119-01 series slip ring
USB cable 1 channels USB2.0
BER(bit-error rate) 10E-11
Mechanical Data
spec data
working life SenRing Slip Rings Grade Table
Rotating speed 150RPM
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
CE certificate Yes
material RoHS certificate
connector USB 2.0 male ( female optional)
insertion loss ≤2db
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm
(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
torque 0.1N.m;+0.03N.m/6 circuits
uh50119-01 Grade Table
Grade code Max rotating speed working life contact material
C:standard 400RPM 20 millions precious metal
D:industrical 800RPM 60 millions
gold-gold
