USB Slip Ring

UH50119-02 Series USB2.0 Signal Slip Ring

2 ChannelS USB2.0 wire +1~72 circuits power/signal;

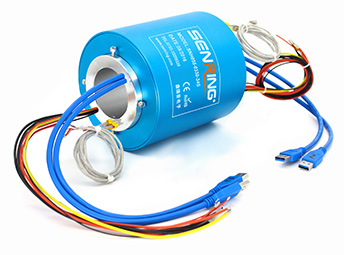

SENRING UH50119-02 series 4 channels USB rotary joint,can transmit 4 channels USB2.0 signal when 360° rotating. SenRing UH50119-02 series USB2.0 signal slip ring,hole size50mm,OD119mm,can transmit various of signal channels,have the advantages of stable s

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
1~8 USB2.0/USB3.0 signal channels optional;
Can combine electrocal / power / signal channels;
Male/female plugs can be inserted and removed directly;
With US military plating technology,precious metal + ultra hard gold plating treatment meke sure low BER error rate and high signal-to-noise ratio;
Part no. description
uh50119-02 series UH50119-02 Series USB2.0 Signal Slip Ring slip ring description
Drawing
uh50119-02 series UH50119-02 Series USB2.0 Signal Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. USB channels no.
signal(2A) power(5A) power(10A) USB2.0 USB3.0
UH50119-02-04S 4 0 0 2 76
UH50119-02-0410 0 4 0 2 76
UH50119-02-0420 0 0 4 2 76
UH50119-02-1010 0 10 0 2 100
UH50119-02-10S 10 0 0 2 100
UH50119-02-0210-08S 8 2 0 2 100
UH50119-02-0610-04S 4 6 0 2 100
UH50119-02-1610 0 16 0 2 124
UH50119-02-16S 16 0 0 2 124
UH50119-02-22S 22 0 0 2 148
UH50119-02-34S 34 0 0 2 196

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SenRing salesman if you want to customize USB and power/signal circuit no,or mix other signal.

Technical Specification of uh50119-02 series slip ring
USB cable 2 channels USB2.0
BER(bit-error rate) 10E-11
Mechanical Data
spec data
working life SenRing Slip Rings Grade Table
Rotating speed 150RPM
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m+(0.03N.m/6 circuits)
connector USB 2.0 male ( female optional)
insertion loss ≤2db
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
CE certificate Yes
material RoHS certificate

uh50119-02 Grade Table
Grade code Max rotating speed working life contact material
C:standard 400RPM 20 millions precious metal
D:industrical 800RPM 60 millions
gold-gold
