Servo Motor Encoder Slip Ring

Z Series Servo Motor Encoder Slip Ring

SENRING servo motor encoder slip rings,Specially desinged for servo motor/encoder of SIMEMS, YASKAWA,Panasonic,Mitsubishi, suitable for all kinds of foreign & domesitc servo mortor / stepper motor,we once developed kinds of servo motor encoder slip rings for SIMEMS,YASKAWA,TECO,PANNASONIC and some domestic clients.

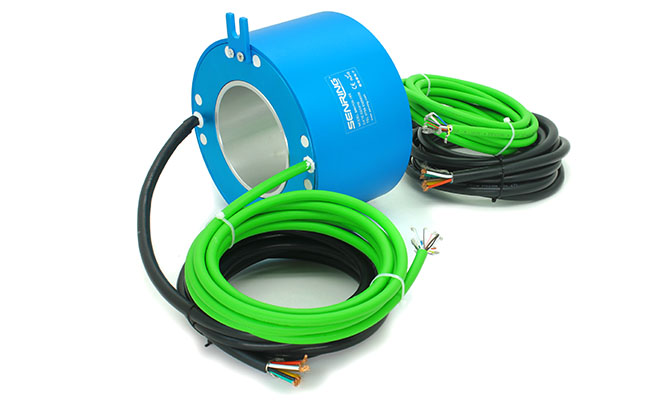

  1. Z Series Servo Motor Encoder Slip Ring image 1Z Series Servo Motor Encoder Slip Ring image 1

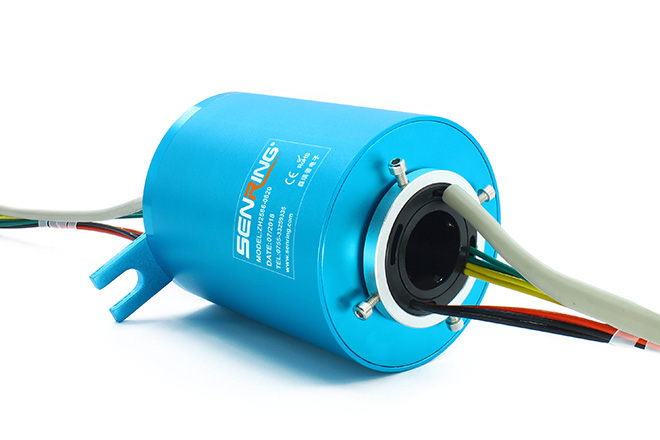

  2. Z Series Servo Motor Encoder Slip Ring image 2Z Series Servo Motor Encoder Slip Ring image 2

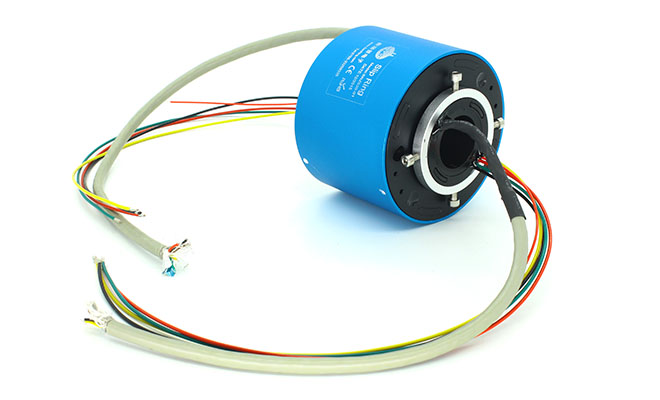

  3. Z Series Servo Motor Encoder Slip Ring image 3Z Series Servo Motor Encoder Slip Ring image 3
Features
Rotor flange or shaft installation optional;
Specially desinged for servo motor/encoder of SIMEMS, YASKAWA,Panasonic,Mitsubishi, suitable for all kinds of foreign & domesitc servo mortor / stepper motor;
Can combine with other switch signal/power channels , CanBus and Profibus.....
Special inner wiring and shielding design to avoid encoder errors,loss rate:<0.02%
contact materials( precious metal + hard gold plating) assures wear resistant and antioxidative for long working life.
Part no. description
  Z - Dimensions - Servo motor No. - Power circuits - Signal circuits - Grade code
servo motor/encode
slip ring
For example:
M056: solid without hole
OD 56mm
H30119: though hole
hole size 30mm,OD 119mm
For example:
01: 1pcs servo motor(2 cables,1*4 [email protected] cable for power+1*6 cores sheilded cable for encode signal)
02: 2 pcs servo motor,03: 3 pcs servo motor,and so on
For example:
06S: 6 circuits [email protected]
12S: 12 circuits [email protected]
For example:
C: Standardf
D: Industrial
H: high quality
For example

ZM056-01-0610:1pcs servo motor+6 [email protected],without hole(solid),OD 56mm;

ZH30119-01-0610:serve for 1pcs servo motor/stepper motor+6 [email protected] cable for power,hole size 30mm,Body Diameter 119mm

ZH70158-04-1210-12S:4 pcs servo motor/stepper motor+12 [email protected] cable for power+12circuits [email protected],hole size 70mm,OD 158mm;

model list
Model# PDF Hole size OD Servo motor No. Max circuits
without hole(solid) 56mm 1~4pcs 24 circuits
without hole(solid) 99mm 1~8pcs 120 circuits
30mm 119mm 1~8pcs 96 circuits
70mm 158mm 1~6pcs 72 circuits

*If no standard models suitable , contact us for custom solutions,E-mail: [email protected] [email protected]

Color code of Lead Wire
ring no. 1 2 3 4 5 6 7 8 9 10 11 12
color black brown red orange yellow green blue purple grey white pink lightblue
ring no. 13 14 15 16 17 18 19 20 21 22 23 24
color WHT/BLK WHT/BRN WHT/RED WHT/ORG WHT/YEL WHT/GRN WHT/BLU WHT/PUR WHT/GRY BLK/RED BLK/BRN transparent

Remark: "1" : the first wire from rotor side ,ZM056-01 wire color sequence: black,brown,red,orange,yellow,green,blue,purple,grey
white, 24 color wires as one group , if more than 24wires, repeat as sequence , use number tube to tell group 1#, 2#....
