Pneumatic Rotary Union(+Electric)

Pneumatic Rotary Union & Rotary Joint

SENRING Pneumatic & Electric Rotary Union is specially designed for industrial automation equipment applications, which can prevent tubes winding problem well, provide 1~24 pneumatic passages and 1~200 wires power or signals.

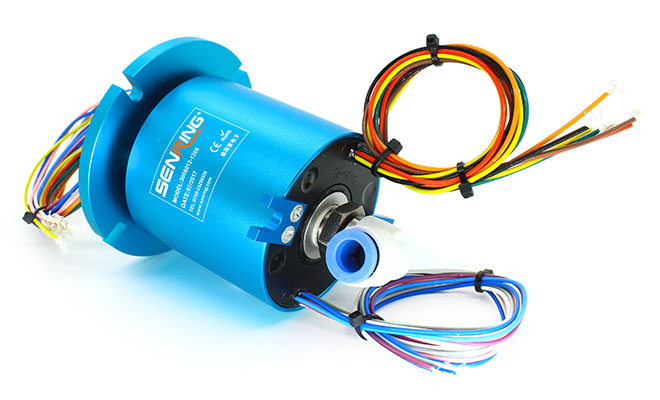

  1. Pneumatic Rotary Union & Rotary Joint image 1Pneumatic Rotary Union & Rotary Joint image 1

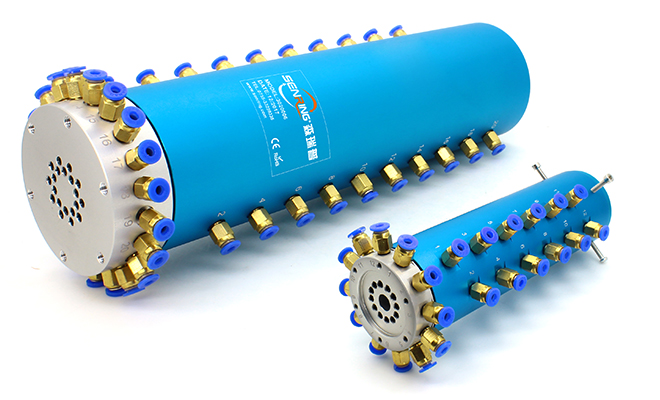

  2. Pneumatic Rotary Union & Rotary Joint image 2Pneumatic Rotary Union & Rotary Joint image 2

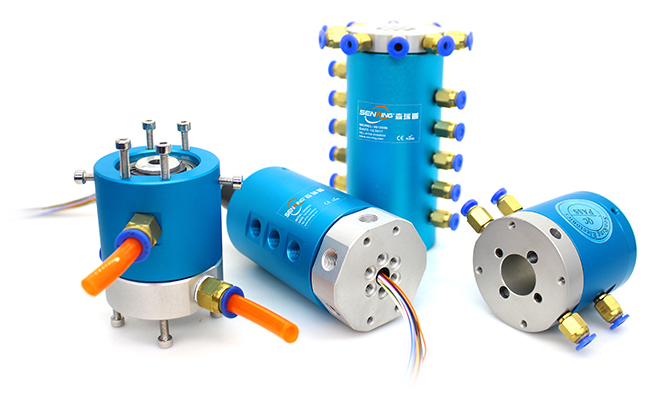

  3. Pneumatic Rotary Union & Rotary Joint image 3Pneumatic Rotary Union & Rotary Joint image 3
Features
Transmit Pnuematic/Hydraulic,such as steam,compressed air,water,hot oil,hydraulic oil,vacuum,liquid,vitriol,drinks....
Can combine to transmit power and signals ...
1,2,4,6,8,12,16 and 24 Pneumatic&Flow passage optional,can be customized
1~300 power/signal channel optional
Standard ports G1/8",G3/8",M5,G1/4",G1/2" optional
Support various pipes of 4mm,6mm,8m,10mm,12mm,15mm,etc
More specification can be customized: port size,gas/flow passage no.,electrical channel no.,etc
Part no. description
  30   X1 - X2 - X3A - X4S
30:Rotary Union
X1:Gas/Flow Passage No.
01:1 Passage, 02:2 Passage
04:4 Passage, 06:6 Passage
08:8 Passage, 12:12 Passage
16:16 Passage, 24:24 Passage
X2: Pipe size
004: 4mm Pipe(M5)
006: 6mm Pipe(G1/8")
008: 8mm Pipe(G1/4")
010: 10mm Pipe(G1/4")
012: 12mm Pipe(G3/8")
015: 15mm Pipe(G1/2")
X3:Power circuits
  A: Current
For Example:
0605: [email protected]
1210: 12 [email protected]
2420: [email protected]
X4: signal circuits
S: signal(<2A)
For Example:
06S: 6 wires
12S: 12 wires
24S: 24 wires
36S: 36 wires
For example

3004006 : 4 gas/flow passage rotary union,port M5,pipe size 6~8mm

3002006-24S : 2 passage(gas/flow,G1/8" port, support 6~8mm pipe)+24 circuits electrical(0~2A power/signal)

3001008-1205 : one passage (gas/flow,G1/4" port,support 8~10mm pipe),12 circuits electrical(0~5A)

model list
3001 series one passage(1 in 1 out,1 in 8 out option)rotary union
Part No. Passages(Gas/Flow) Port Size Pipe Size Circuits (power/signal) PDF
1 M5 4~6mm 2~12 circuits
1 G1/4" 8~10mm 2~72 circuits
1 G1/2" 12~15mm 2~96 circuits
1 in 8 out 1 in(G1/2"),8 out(G1/8") 1 in(15mm),8 out(8mm) 2~96 circuits

30X1 Series Pneumatic,Hydraulic-Electrical Rotary Unions/Rotary Joints (M5 port)
Part No. Passages(Gas/Flow) Port Size Pipe Size Circuits (power/signal) PDF
2 Passages M5 4mm Rotary Union Only
2 Passages M5 4mm 6~36 circuits optional
4 Passages M5 4mm Rotary Union Only
4 Passages M5 4mm 6~36 circuits
8 Passages M5 4mm Rotary Union Only
8 Passages M5 4mm 6~36 circuits
12 Passages M5 4mm Rotary Union Only
12 Passages M5 4mm 6~36 circuits
16 Passages M5 4mm Rotary Union Only
16 Passages M5 4mm 6~36 circuits
24 Passages M5 4mm Rotary Union Only
24 Passages M5 4mm 6~36 circuits

30X1 Series Pneumatic,Hydraulic-Electrical Rotary Unions/Rotary Joints (G1/8" port)
Part No. Passages(Gas/Flow) Port Size Pipe Size Circuits (power/signal) PDF
2 Passages G1/8" 6~8mm Rotary Union Only
2 Passages G1/8" 6~8mm 2~56 circuits
2 in 2 out( with center hole 30mm) G1/8" 6~8mm Rotary Union Only
2 in 2 out( with center hole 30mm) G1/8" 6~8mm 2~56 circuits
4 Passages G1/8" 6~8mm Rotary Union Only
4 Passages G1/8" 6~8mm 2~56 circuits
6 Passages G1/8" 6~8mm Rotary Union Only
6 Passages G1/8" 6~8mm 2~56 circuits
8 Passages G1/8" 6~8mm Rotary Union Only
8 Passages G1/8" 6~8mm 2~56 circuits
12 Passages G1/8" 6~8mm Rotary Union Only
12 Passages G1/8" 6~8mm 2~56 circuits

30X1 Series Pneumatic,Hydraulic-Electrical Rotary Unions/Rotary Joints (G3/8" port)
Part No. Passages(Gas/Flow) Port Size Pipe Size Circuits (power/signal) PDF
2 Passages G3/8" 10~12mm Rotary Union Only
2 Passages G3/8" 10~12mm 2~120 circuits
4 Passages G3/8" 10~12mm Rotary Union Only
4 Passages G3/8" 10~12mm 2~120 circuits
8 Passages G3/8" 10~12mm Rotary Union Only
8 Passages G3/8" 10~12mm 2~120 circuits
12 Passages G3/8" 10~12mm Rotary Union Only
12 Passages G3/8" 10~12mm 2~120 circuits

*If no standard models suitable , contact us for custom solutions: [email protected] [email protected], [email protected]

Color code of Lead Wire
ring no. color ring no. color
1 black 13 WHT/BLK
2 brown 14 WHT/BRN
3 red 15 WHT/RED
4 orange 16 WHT/ORG
5 yellow 17 WHT/YEL
6 green 18 WHT/GRN
7 blue 19 WHT/BLU
8 purple 20 WHT/PUR
9 grey 21 WHT/GRY
10 white 22 BLK/RED
11 pink 23 BLK/BRN
12 lightblue 24 transparent
Applied projects
Working principle of Senring electrical-pneumatic slip ring How does Senring 4 passages Pnuematic/Hydraulic+Electrical Rotary Unions Work?
