Pneumatic Rotary Union(+Electric)

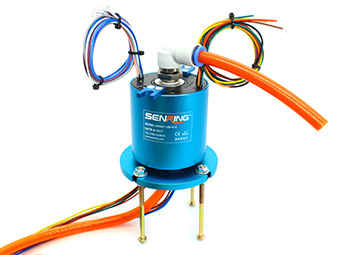

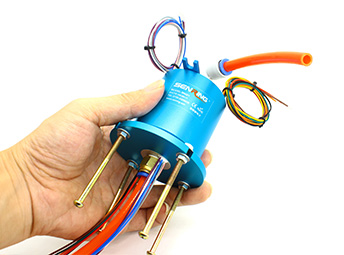

3001004 Series M5 one Passage Rotary Unions

One Passage+2~12 Circuits Electrical,support 1 M5 port for 4mm pipes

SENRING one passages rotary unions 3001004 series,support M5 port for 4mm pipes,can transfer various mediums including air,steam,vacuum,Vacuum,etc when 360° rotating, Advantages : compact size, light weight , low torque. It also can combine to transmit 2

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.
Max. Pressure(s):10Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Standard version with flange mounting,can be customized with hollow shaft mounting;
Support 1 M5 port for 4mm pipes;

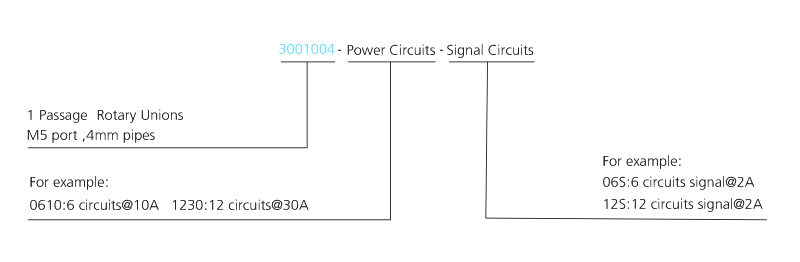

Part no. description
3001004 series 3001004 Series M5 one Passage Rotary Unions slip ring description

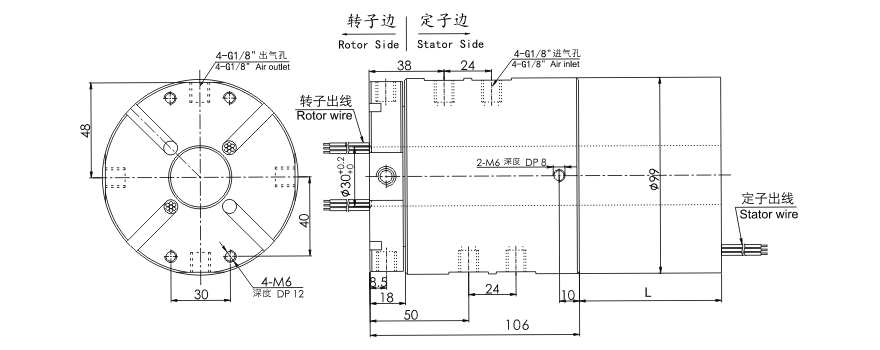

Drawing
3001004 series 3001004 Series M5 one Passage Rotary Unions slip ring Drawing
Standard model list
Model List Passages(Gas) Power Circuits(10A) Signal Circuits(2A) Length L(mm)
3001004-06S 1 passage 0 6 36
3001004-08S 1 passage 0 8 36
3001004-0610 1 passage 6 0 36
3001004-12S 1 passage 0 12 36
Technical Specification of 3001004 series slip ring
Rotary Unions & Joints Spec.
Passages(Gas) 1 passage Max. Operating Pressure Positive Pressure 10Mpa 10Mpa,Vacuum : -1.5kPa
Pipe Size 4mm pipe, M5 port torque <0.2N.m
Mechanical Data Electrical Data
spec. data spec. data
Working life 10millions for ref(depends on working conditions) Power Signal
Max. Operating Speed 250RPM continously, 1000RPM intermittently Voltage range 0~440VAC/VDC 0~440VAC/VDC
Working temp. -30°C~80°C Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Work humidity 0~85% RH Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Contact Materia Precious Metal Lead wire length standard 250mm(can be customized)
Housing Material aluminum alloy Insolution resistance [email protected],6s
IP Grade IP51 Electrical noise <0.01Ω
