SENRING

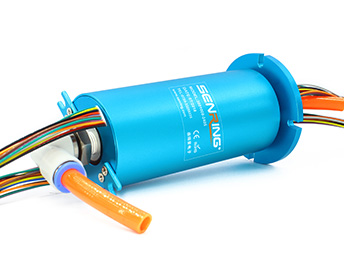

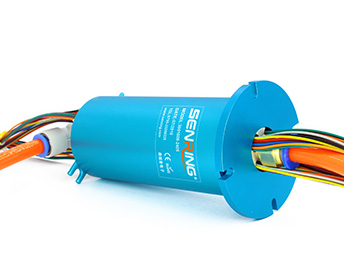

Pneumatic Rotary Union(+Electric)

3001008 Series 1-Passages Rotary Unions

1-Passage+2~72 Circuits Electrical,support 1 G1/4" port for 8~10mm pipes

SENRING 1-passages rotary unions 3001008 series,support G1/4" port for 8~10mm pipes,can transfer various mediums including compressed air,steam,vacuum...etc when 360° rotating, Advantages : compact size, light weight , low torque. It also can combine to

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.
Max. Pressure(s):10Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Standard version with flange mounting,can be customized with hollow shaft mounting;
Support 1 G1/4" port for 8~10mm pipes.
Part no. description
3001008 series 3001008 Series 1-Passages Rotary Unions slip ring description
Drawing
3001008 series 3001008 Series 1-Passages Rotary Unions slip ring Drawing
Standard model list
Model List Passages(Gas) Power Circuits(10A) Signal Circuits(2A) Length L(mm)
3001008-02S 1 passage 0 2 27
3001008-0210 1 passage 2 0 27
3001008-03S 1 passage 0 3 30
3001008-0310 1 passage 3 0 30
3001008-06 1 passage 0 6 38
3001008-0210-04S 1 passage 2 4 38
3001008-0410-02S 1 passage 4 2 38
3001008-0610 1 passage 6 0 38
3001008-12S 1 passage 0 12 55
3001008-0210-10S 1 passage 2 10 55
3001008-0310-09S 1 passage 3 9 55
3001008-0610-06S 1 passage 6 6 55
3001008-0810-04S 1 passage 8 4 55
3001008-1010-02S 1 passage 10 2 55
3001008-1210 1 passage 12 0 55
3001008-18S 1 passage 0 18 71.5
3001008-0210-16S 1 passage 2 16 71.5
3001008-0410-14S 1 passage 4 14 71.5
3001008-0610-12S 1 passage 6 12 71.5
3001008-0810-10S 1 passage 8 10 71.5
3001008-1010-08S 1 passage 10 8 71.5
3001008-1210-06S 1 passage 12 6 71.5
3001008-1410-04S 1 passage 14 4 71.5
3001008-1610-02S 1 passage 16 2 71.5
3001008-24S 1 passage 0 24 88.5
3001008-0410-20S 1 passage 4 20 88.5
3001008-0610-18S 1 passage 6 18 88.5
3001008-1210-12S 1 passage 12 12 88.5
3001008-1810-06S 1 passage 18 6 88.5
3001008-2410 1 passage 24 0 88.5
3001008-30S 1 passage 0 30 105
3001008-0210-28S 1 passage 2 28 104
3001008-0410-26S 1 passage 4 26 104
3001008-0610-24S 1 passage 6 24 104
3001008-36S 1 passage 0 36 122
3001008-0410-32S 1 passage 4 32 122
3001008-0610-30S 1 passage 6 30 122
3001008-42S 1 passage 0 42 139
3001008-0410-38S 1 passage 4 38 140
3001008-48S 1 passage 0 48 156
3001008-56S 1 passage 0 48 178
3001008-72S 1 passage 0 48 223
Technical Specification of 3001008 series slip ring
Passages(Gas) 1 passage
Pipe Size 8mm pipe, G1/4" Port
Mechanical Data
spec. data
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating
Pressure
Positive Pressure 10Mpa, Vacuum -1.5kPa
torque 0.2N.m
Electrical
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Lead wire length standard 250mm(can be customized)
Insolution resistance [email protected],6s
Electrical noise <0.01Ω
