SENRING
High Speed Slip Rings

G Series High Speed Slip Ring (Max Speed Up To 12000)

Senring's high speed slip rings,Connections are made through color coded solder terminals located on both the slip ring rotor and stator. Permanently lubricated bearing eliminate the need for routine cleaning and maintenance. The high speed electrical slip ring's weight and compact design of these slip ring assemblies make them ideal for use in applications where space is limited.

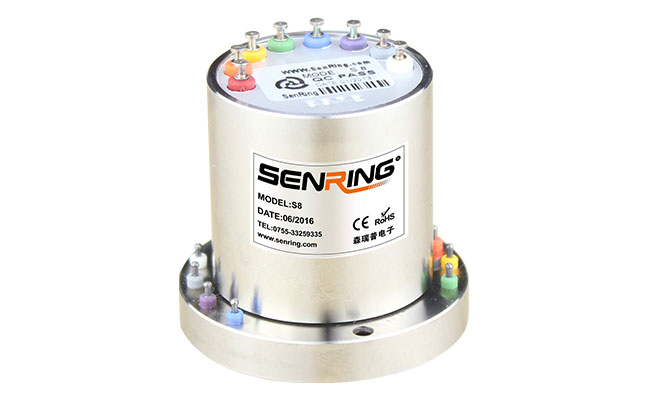

  1. G Series High Speed Slip Ring (Max Speed Up To 12000) image 1G Series High Speed Slip Ring (Max Speed Up To 12000) image 1

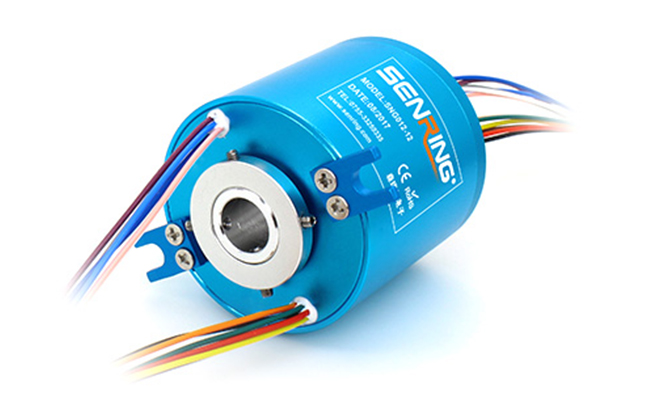

  2. G Series High Speed Slip Ring (Max Speed Up To 12000) image 2G Series High Speed Slip Ring (Max Speed Up To 12000) image 2
  3. G Series High Speed Slip Ring (Max Speed Up To 12000) image 3G Series High Speed Slip Ring (Max Speed Up To 12000) image 3
Features
Color coded terminals
Compact structure,lightweight
Permanently lubricated bearing
Rugged AL alloy,stainless steel housing material
High quality ring and brush
model list
Model PDF Max speed Circuits Max current ID(mm) OD(mm)
1500RPM 6~12 circuits 0~10A 20 56
5000RPM 12 circuits 0~5A 12.7 56
5000RPM 12 circuits 0~5A 38.1 99
12000RPM 4~10 circuits 0~0.5A solid 31
Color code of Lead Wire
ring no. color ring no. color
1 black 13 WHT/BLK
2 brown 14 WHT/BRN
3 red 15 WHT/RED
4 orange 16 WHT/ORG
5 yellow 17 WHT/YEL
6 green 18 WHT/GRN
7 blue 19 WHT/BLU
8 purple 20 WHT/PUR
9 grey 21 WHT/GRY
10 white 22 BLK/RED
11 pink 23 BLK/BRN
12 lightblue 24 transparent
