G038 Series Super High Speed Slip Ring(Max Speed 5000RPM)

Hole size 38.1mm,12 circuits 5A power;

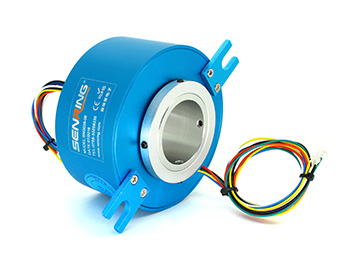

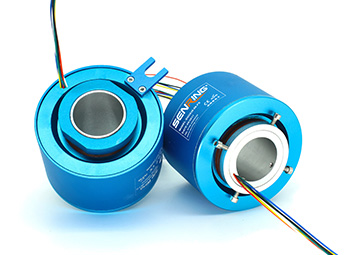

SENRING G038-12 series High Speed,a kind of Hollow Shaft slip ring,max speed 5000RPM.With hole size 12.7mm,OD 56mm,integrated structure, light weight,high IP grade.Adopt the special high temperature alloys and composites material , which can make sure the

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features: Max speed 5000RPM;; Stablely transmit 12 circuit 5A signal or power;; Hole size 38.1mm,OD 99mm;; Adopt high temperature alloys and composites materials,no need cooling;; Integrated structure, easy installation,high concentricity;; ypical application: lab and any testing equipments need to transmit signal in high speed rotating;

Part no. description

g038 series G038 Series Super High Speed Slip Ring(Max Speed 5000RPM) slip ring description

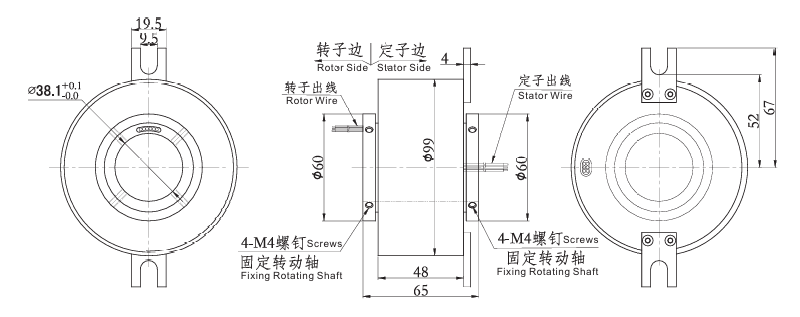

Drawing

Standard model list

Model	circuits(10)	Length L(mm)
G038-06	6 circuits	65
G038-12	12 circuits	89

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SENRING salesman if you need customize the channel no. of Ethernet,power and signal,or mix other signals.

Technical Specification of g038 series slip ring

Mechanical Data
spec	data
Rotating speed	5000RPM
working temp.	-30℃∼80℃
work humidity	0~85%RH
contact material	SENRING Slip Rings Grade Table
housing material	aluminum alloy
torque	0.05N.m;+0.02N.m/6 circuits

Electrical Data
spec	data
voltage range	0∼440VAC/VDC
insulation resistance	≥1000MΩ/500VDC
lead wire spec.	AWG22# Silver-plated teflon
lead wire length	standard 300mm（can be customized）
Dielectric Strength	800VAC@50Hz，60s
Electrical noise	< 0.01Ω
certificate	RoHS、CE
IP grade	IP51
