SENRING
High Speed Slip Rings

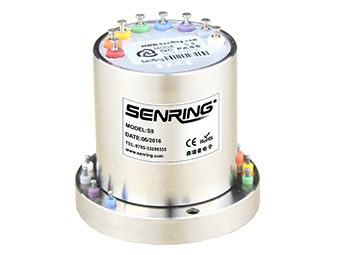

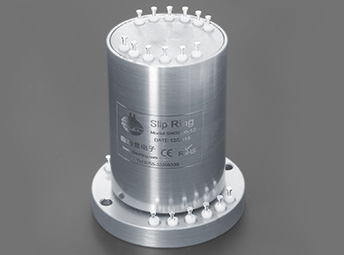

G000 Series Super High Speed Slip Ring(Max Speed 12000RPM)

Max speed 12000RPM,4~10 circuits, 0.5A current.

SENRING G000 series High Speed slip ring,max speed 12000RPM, which is the highest rotating speed slip ring model when 360° rotating among high speed series slip rings. With integrated structure, light weight,high IP grade. Adopt the same materials for a

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Max speed 12000RPM;
Stablely transmit 2~16 circuit (0.1~1A) signal or power;
solid without hole, stator OD31.2mm,as drawing;
Adopt high temperature alloys and composites materials,no need cooling;
Integrated structure, easy installation,high concentricity;
Typical application: aero-engine speed test, automobile drive shaft torque test
Part no. description
g000 series G000 Series Super High Speed Slip Ring(Max Speed 12000RPM) slip ring description
Drawing
g000 series G000 Series Super High Speed Slip Ring(Max Speed 12000RPM) slip ring Drawing
Technical Specification of g000 series slip ring
Mechanical Data
spec data
Rotating speed 12000RPM
working temp. -30℃∼80℃
work humidity 0~85%RH
contact material SENRING Slip Rings Grade Table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
Electrical Data
spec data
voltage range 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC
lead wire spec. terminal
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
certificate RoHS、CE
IP grade IP51
