High Speed Slip Rings

G012-12 Series Super High Speed Slip Ring(Max Speed 5000RPM)

Hole size 12.7mm,12 circuits 5A power

SENRING G012-12 series High Speed,a kind of Hollow Shaft slip ring.With hole size 12.7mm,OD 56mm,integrated structure, light weight,high IP grade.Adopt the same materials for aero-engines (such as high temperature alloys and composites material) , which

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Max speed 5000RPM;
Stablely transmit 12 circuit 5A signal or power;
Hole size 12.7mm,OD 56mm;
Adopt high temperature alloys and composites materials,no need cooling;
Integrated structure, easy installation,high concentricity;
Typical application: lab and any testing equipments need to transmit signal in high speed rotating;
Part no. description
g012-12 series G012-12 Series Super High Speed Slip Ring(Max Speed 5000RPM) slip ring description

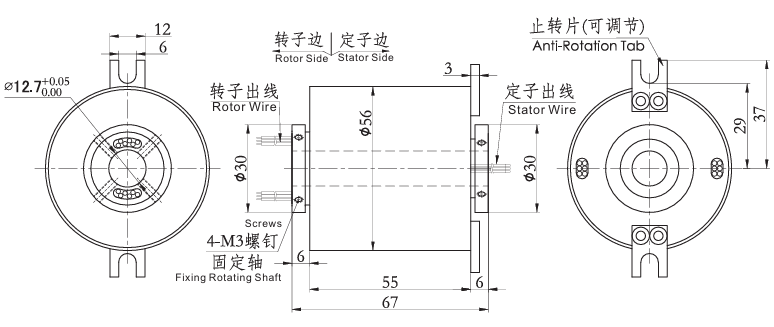

Drawing
g012-12 series G012-12 Series Super High Speed Slip Ring(Max Speed 5000RPM) slip ring Drawing
Technical Specification of g012-12 series slip ring
Mechanical Data
spec data
Rotating speed 5000RPM
working temp. -30℃∼80℃
work humidity 0~85%RH
contact material SENRING Slip Rings Grade Table
housing material saluminum alloy
torque 0.05N.m;+0.02N.m/6 circuits
Electrical Data
spec data
voltage range 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC
lead wire spec. AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical noise < 0.01Ω
certificate RoHS、CE
IP grade IP51
