Separate Slip Rings

S Series Separate Slip Rings

SENRING S Series Separate Slip Rings, design with two separate components brush and rotor, suitable for some special applications with compact installation space, applied to transmit power and weak signals when device 360° rotating.

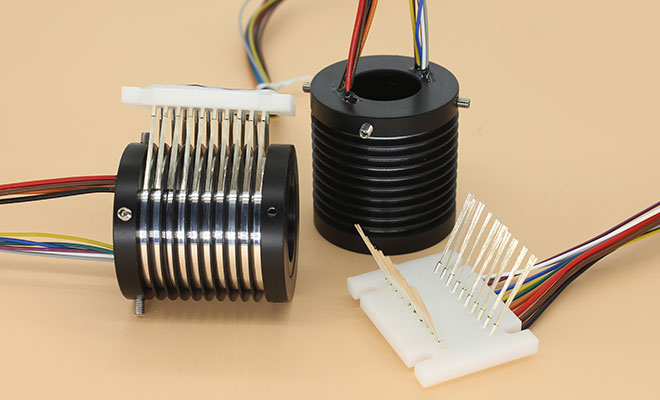

  1. S Series Separate Slip Rings image 1S Series Separate Slip Rings image 1

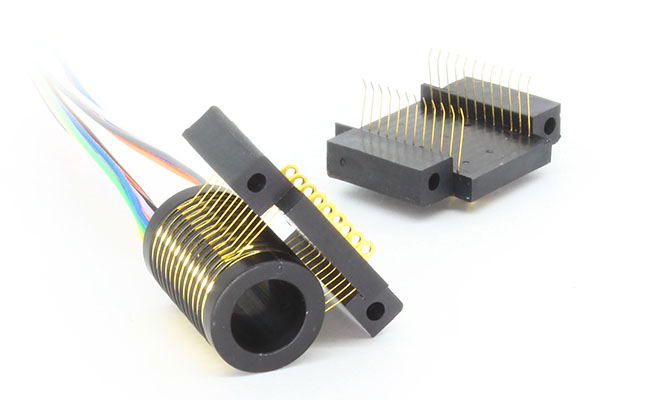

  2. S Series Separate Slip Rings image 2S Series Separate Slip Rings image 2

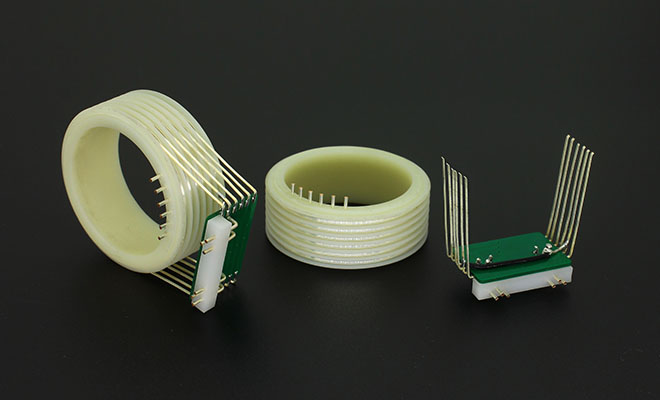

  3. S Series Separate Slip Rings image 3S Series Separate Slip Rings image 3
Features
why senring developed sns series Separate slip ring?Sometimes a self-contained
Typical application:instrument, display and avionics, testing and measurement
Options available slip ring, raised barrier(0.110 diameter) and V-groove 90°in each ring
Brush block: Flying leads and gold or tin plated terminals
High quality ring and brush
model list
Model PDF Circuits OD through hole size length L(mm)
6 circuits 14.3mm 9.55mm 13.2mm
12 circuits 14.3mm 9.55mm 23mm
1~48 circuits32~306 25mm 12.7~200mm 100mm

*If no standard models suitable , contact us for custom solutions,E-mail: [email protected] [email protected]

Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
