S010-06 Series 6 Channels Miniature Separate Slip Ring(Hole Size 9.55mm)

6 circuits,OD 14.3mm,hole size 9.55mm;

S010-06 series 6 channels miniature separate slip ring ,with small size.Applied to some special situation instead of SenRing Capsule slip ring.Suitable for any motor machines to transmit supply power/signal when unrestricted,intermittent,or continuous rotation,which can improve the machine performance, simplify the system operation and avoid damaging the wire hanging in the moving part of the machine.With advantage of small size in barrel shaped stator,single continuous copper ring around the axis of rotation.Used for some devices require to transmit weak current or signals when 360° rotating ,due to its installation is more complicated than standdard through hole slip rings and capsule slip rings , so Senring suggestion: It is better to avoid to choose separate slip ring if standard through hole slip ring can be used.

Features
Transmit 0.1~2A weak signal with 360° rotating;
Small size,OD 14.3mm,length 13.2mm,hole size 9.55mm;
Rotor and stator can be installed independently,suitable for equipment with compact size;
Both copper ring and terminal are gold-plated or tin plated make sure excellent electrical conductivity;
V-groove gold-plated design ensure high resistance to oxidation and wear;
Can be customized with higher insulation (OD:0.110mm) and 90 ° V-groove ring;
Typical application:Instruments, monitors and avionics, test and measurement.

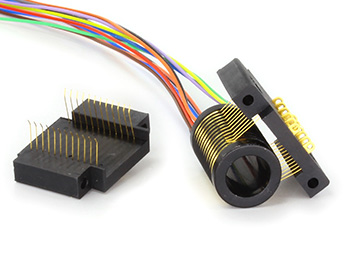

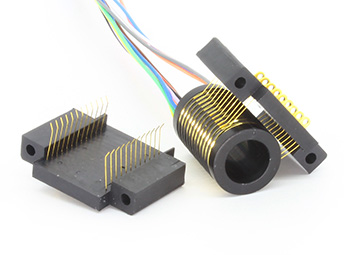

S010-06 series 6 channels miniature separate slip ring
Drawing

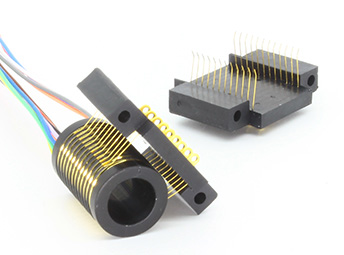

S010-06 series 6 channels miniature separate slip ring
Technical Specification of the slip ring
Mechanical Data Electrical Data
spec data spec data
Circuits 6 circuits power signal
Rotating speed 250RPM voltage range 0∼250VAC/VDC 0∼250VAC/VDC
working temp. -40℃∼80℃ insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
work humidity 0~85%RH lead wire spec. AWG30# Silver-plated teflon AWG30# Silver-plated teflon
contact material precious metal:gold-gold lead wire length standard 150mm(can be customized)
material RoHS compliant Dielectric Strength [email protected],60s
CE certificate Yes Electrical noise < 0.01Ω
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent

Remark:"1" : the first wire (ring 1#)starts from rotor side , such as S010-06 wire color sequence: BLK/BRN/RED/ORG/WHT/GRN , 24 color wires as one group , if more than 24wires, repeat as sequence , use number tube to tell group 1#, 2#....
