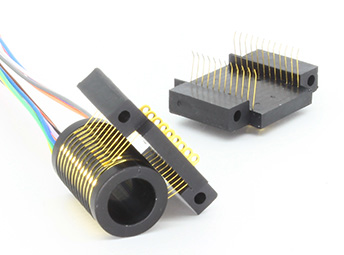

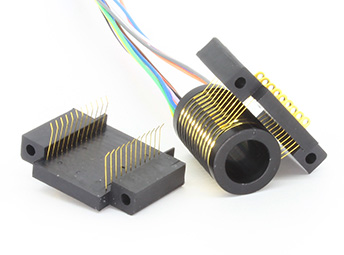

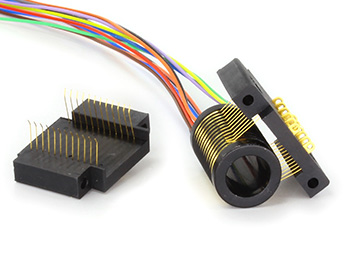

S000 Series 1~48 Circuits Separate Slip Ring (Hole Size:9.55mm)

1~48 circuits,hole size 12.7~250mm;

SenRing S000 series 1~48circuits separate slip ring,hole size 12.7mm~200mm optional,more channels(circuits no of current/signal) ,the length will be longer.Pls refer to the following table for details.Some devices require to transmit various current or signals when 360° rotating ,but due to space limit, standard through hole slip ring with large size is unsuitable,S000 series is specially designed to replace them.S000 series separate slip ring include rotor part and stator part which required to be installed separately,installation is more complicated than standdard through hole slip rings, so Senring suggestion: It is better to avoid to choose separate slip ring if standard through hole slip ring can be used.

sFeatures
Transmit 2~10A current/signal with 360° rotating;
Hole size(rotor):12.7mm~250mm optional,pls refer to below table for length ;;
Advantages:rotor and stator can be installed independently , compared to other type of slip rings with same circuits, less installation requried;
Disadvantage:compared to SenRing standard through hole slip rings, installation is more complicated , and not well sealed;
Both copper ring and terminal are gold-plated or tin plated make sure excellent electrical conductivity;
Can be customized with higher insulation (OD:0.110mm) and 90 ° V-groove ring;
S000 series 1~48 circuits separate slip ring
Drawing
S000 series 1~48 circuits separate slip ring

*Remark:N means circuit no,1-48 circuits optional;
*Tip: 10A combined in parallel for multiple*10A use;
*For example:2 circuits of 10A in parallel for 20A use.

Model List
Model signal Pls refer to below table according Spec Code marked on above drawing
A(ID) B C D E F G H I J L
S01210A12.7323M320563.2172511.2+Nx2.8
S02510A25.4524M430584.2254014.2+Nx4
S03810A38.1624M435684.2254014.2+Nx4
S05010A50764M442684.2254014.2+Nx4
S06010A60925M4508104.2305016.2+Nx4
S07010A701025M4608104.2305016.2+Nx4
S08010A801165M4658104.2305016.2+Nx4
S09010A901406M5758124.2406018.2+Nx4
S10010A1001406M6758124.2406018.2+Nx4
S12010A1201586M6758124.2406018.2+Nx4
S15010A1501946M61108124.2406018.2+Nx4
S18010A1802226M61208124.2406018.2+Nx4
S20010A2002446M61308124.2406018.2+Nx4
S25010A2503068M61608206.2608022.2+Nx6

*Remark:N means circuit no,1-48 circuits optional,N circuits of 10A to get N*10A.
such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician:186 7557 7111.

Technical Specification of the slip ring
Mechanical Data Electrical Data
spec data spec data
Circuits 1~48 circuits power signal
Rotating speed 250RPM voltage range 0∼440VAC/VDC 0∼440VAC/VDC
working temp. -40℃∼80℃ insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
work humidity 0~85%RH lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
contact material precious metal:gold-gold lead wire length standard 250mm(can be customized)
material RoHS compliant Dielectric Strength [email protected],60s
CE certificate Yes Electrical noise < 0.01Ω
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent
