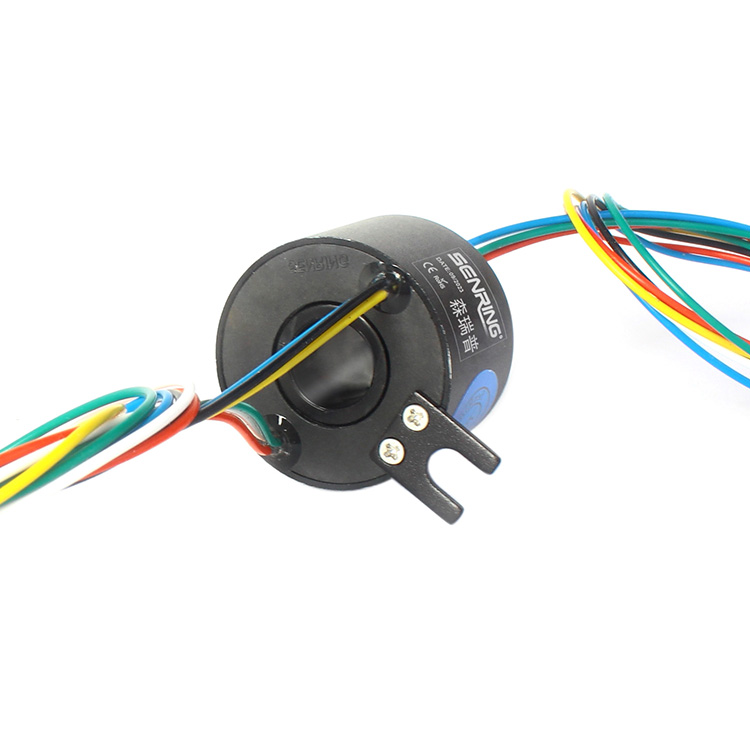

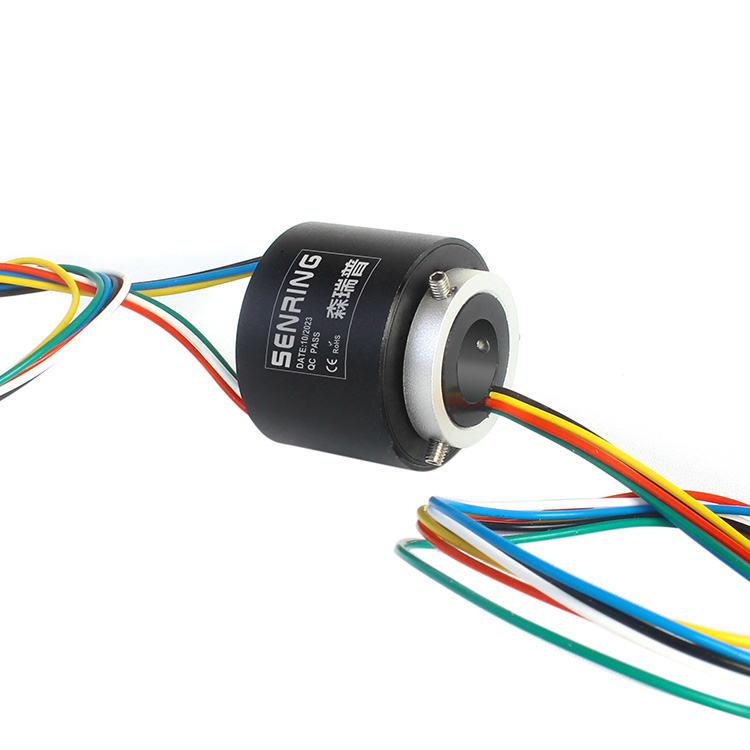

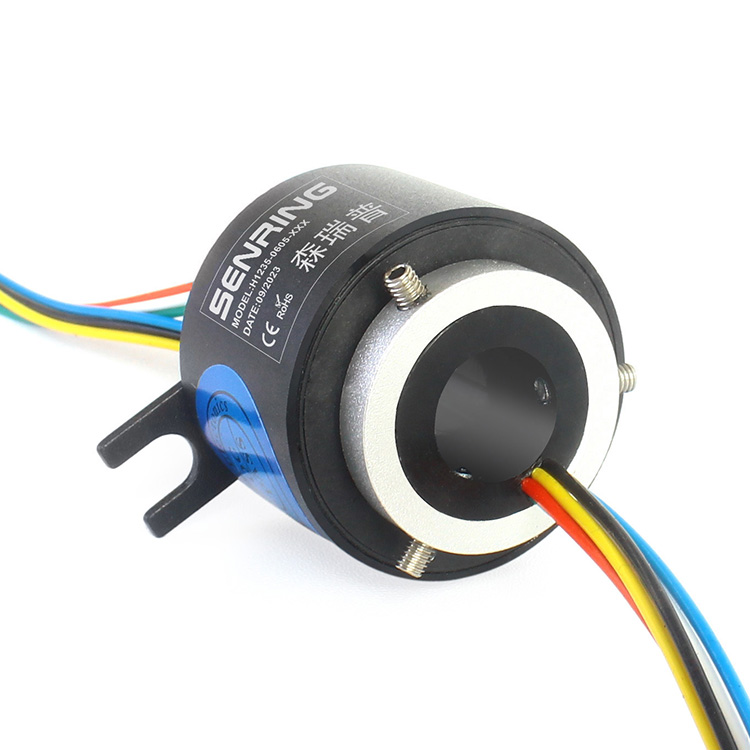

H0835 Series Mini Through Hole Slip Ring

ole size 8mm ,OD 35mm

H0835 series is mini through hole slip ring, hole size 8mm, suitable for shaft 8mm <=8mm),OD 35mm,housing material can be use plastic, aluminum alloy or stainless, it is ingergal precision slip ring. current is 5A, (5A/10A also workable) if have more requ

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features

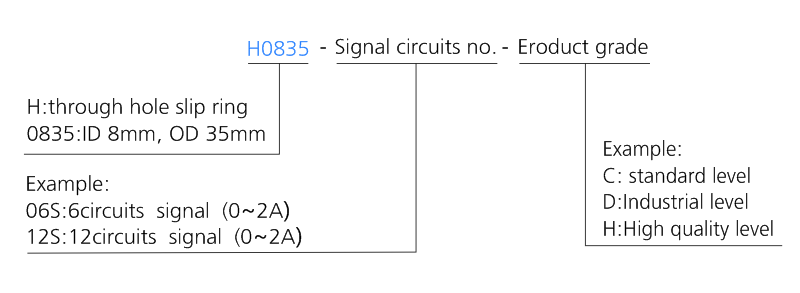

Part no. description

h0835 series H0835 Series Mini Through Hole Slip Ring slip ring description

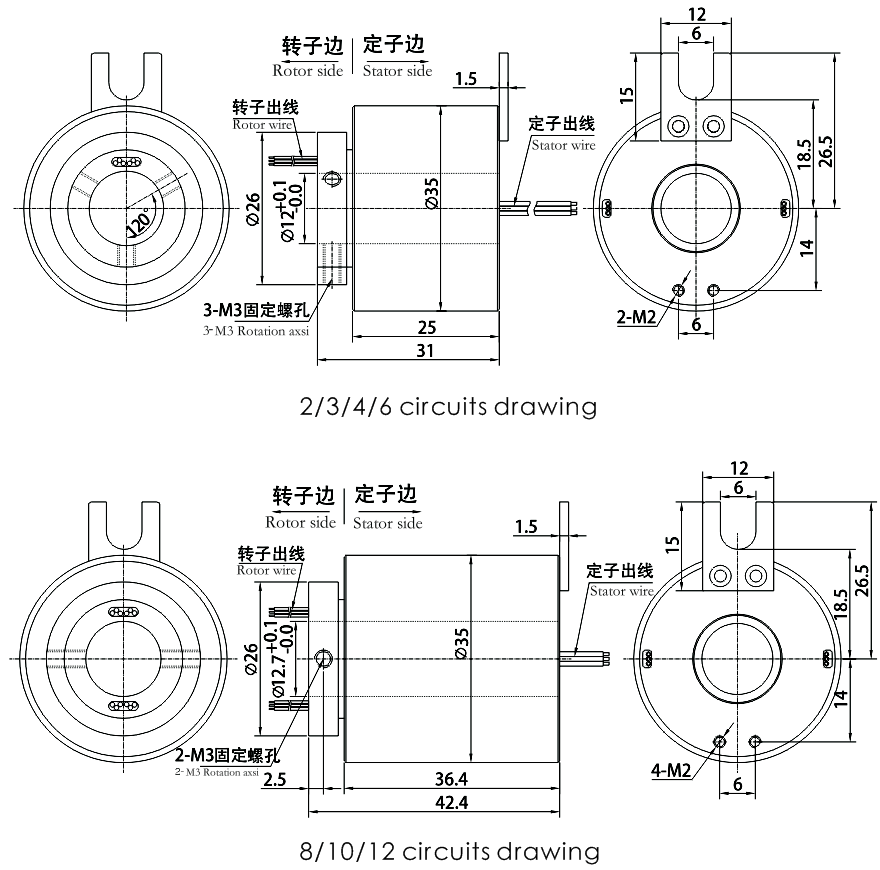

Drawing

Standard model list

model	circuits （ signal or 0-5A）	Length L(mm)
H0835-0205	2	25
H0835-0305	3	25
H0835-0405	4	25
H0835-0605	6	25
H0835-0805	8	36.4
H0835-1005	10	36.4
H0835-1205	12	36.4

* Remark: circuits can be combined in parallel for bigger current, N circuits of 5A to get N*5A, such as 2 circuits of 5A in parallel for 4A use.

Technical Specification of h0835 series slip ring

Mechanicall parameters
Working Life	refer to slip ring grade table
Rotating speed	refer to slip ring grade table
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	refer to slip ring grade table
Housing Material	AL alloy
Torque	0.05N.m+0.02N.m/6 wire
IP Grade	IP51

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~440VAC/VDC	0~240VAC/VDC
Insolution Resistance	≥500MΩ/500VDC	≥500MΩ/500VDC
Lead wire Spec.	AWG22# Silver-plated teflon	AWG22# Silver-plated teflon
lead wire length	standard length 300mm(can be customized)
Dielectric Strength	500VAC@50Hz,60s
Electrical Noise	< 0.01Ω

h0835 Grade Table

Grade code	Max rotating speed	Working Life	Contact Material
C(Standard)	250RPM	20 millions revolutions	precious metal
D(Industrical)	600RPM	80 millions revolutions	precious metal
H(High Quality)	1000RPM	150 millions revolutions	gold alloy
