SENRING
Through hole slip ring

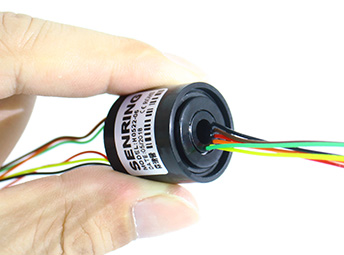

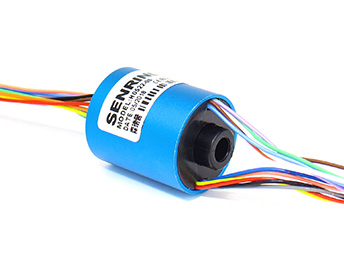

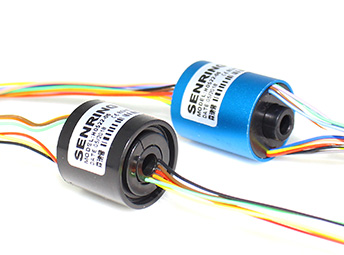

H0522 miniature through hole slip ring|Miniature slip ring

hole size 5mm ,OD 22mm

Senring H0522 series is mini through hole slip ring, hole size 5mm, OD 22mm (suitable for shaft ≤5mm ) H0522 series is mini through hole precision slip ring, current for each wires is 2A , it is applied to any devices where requires to transmit power and

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard current is 2A (can be paralleling wires use as 5A/10A);
Max rotating speed : 250RPM,600RPM,1000RPM(optional);
standard model 2-12circuits signal(each 2A) or 2~4circuits power(each 10A),customized for more circuits or large current;
Contact materil used precious metal,ensure the stablity and working life.;
More smooth rotation,lower torque and lower dynamic resistance;
Part no. description
h0522 series H0522 miniature through hole slip ring|Miniature slip ring slip ring description
Drawing
h0522 series H0522 miniature through hole slip ring|Miniature slip ring slip ring Drawing
Standard model list
model circuits ( signal or 0-2A) Length L(mm)
H0522-02S 2 20
H0522-03S 3 20
H0522-04S 4 20
H0522-06S 6 20
H0522-08S 8 25.5
H0522-10S 10 25.5
H0522-12S 12 25.5
Technical Specification of h0522 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Insolution Resistance ≥500MΩ/500VDC ≥500MΩ/500VDC
Lead wire Spec. AWG28# Silver-plated teflon AWG28# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h0522 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 60 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
