SENRING
Through hole slip ring

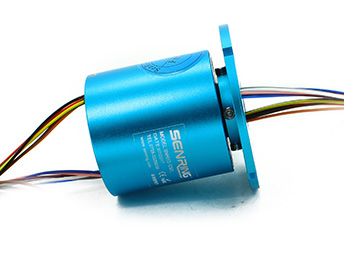

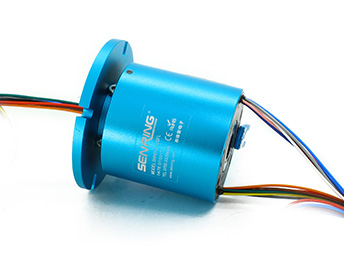

H50119F Series Through Bore Slip Ring

hole size 50mm, OD 119mm

H50119F series is standard through hole slip ring ,rotor Flange installation, hole size 50mm(suitable for shaft ≤50mm),OD 119mm。It can stably transmit 2~36 circuits power@10A or 2~108 circuits signal@2A and applied to any devices where requires to transmi

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
support 1~108circuits power /signal,current and channels can be customized;;
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h50119f series H50119F Series Through Bore Slip Ring slip ring description
Drawing
h50119f series H50119F Series Through Bore Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H50119F-02S 0 2 36 H50119F-36S 0 36 172
H50119F-0210 2 0 36 H50119F-0610-30S 6 30 172
H50119F-03S 0 3 40 H50119F-1210-24S 12 24 172
H50119F-0310 3 0 40 H50119F-3610 36 0 172
H50119F-06S 0 6 52 H50119F-42S 0 42 196
H50119F-0210-04S 2 4 52 H50119F-0610-36S 6 36 196
H50119F-0410-02s 4 2 52 H50119F-1210-30s 12 30 196
H50119F-0610 6 0 52 H50119F-4210 42 0 196
H50119F-12S 0 12 76 H50119F-48S 0 48 220
H50119F-0210-12S 2 12 76 H50119F-0610-42S 6 42 220
H50119F-0310-09S 3 9 76 H50119F-1210-36S 12 36 220
H50119F-0610-06S 6 6 76 H50119F-1810-30S 18 30 220
H50119F-0810-04S 8 4 76 H50119F-P2410-24S 24 24 220
H50119F-1010-02S 10 2 76 H50119F-4810 48 0 220
H50119F-1210 12 0 76 H50119F-60S 0 60 268
H50119F-18S 0 18 100 H50119F-0610-54S 6 54 268
H50119F-0210-16S 2 16 100 H50119F-0910-51S 9 51 268
H50119F-0410-14S 4 14 100 H50119F-1210-48S 12 48 268
H50119F-0610-12S 6 12 100 H50119F-2430-16S 24 16 268
H50119F-0810-10S 8 10 100 H50119F-72S 0 72 316
H50119F-1010-08S 10 8 100 H50119F-1210-60S 12 60 316
H50119F-1210-06S 12 6 100 H50119F-2410-48S 24 48 316
H50119F-1410-04S 14 4 100 H50119F-3610-36S 36 36 316
H50119F-1610-02S 16 2 100 H50119F-84S/td> 0 84 364
H50119F-24S 0 24 124 H50119F-1210-72S 12 72 364
H50119F-0410-20S 4 20 124 H50119F-2410-60S 24 60 364
H50119F-0610-18S 6 18 124 H50119F-3610-48S 36 48 364
H50119F-1210-12S 12 12 124 H50119F-96S 0 96 412
H50119F-1810-06S 18 6 124 H50119F-1210-84S 12 84 412
H50119F-2410 24 0 124 H50119F-2410-72S 24 72 412
H50119F-30S 0 30 148 H50119F-3610-60S 36 60 412
H50119F-0610-24S 6 24 148 H50119F-4210-54S 42 54 412
H50119F-1210-18S 12 18 148 H50119F-108S 0 108 460
H50119F-1810-12S 18 12 148 H50119F-1210-96S 12 96 460
H50119F-2410-06S 24 6 148 H50119F-2410-84S 24 84 460
H50119F-3010 30 0 148 H50119F-3610-72S 36 72 460

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h50119f series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~690VAC/VDC 0~440VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical Noise < 0.01Ω

h50119f Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
