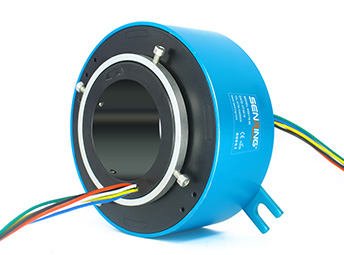

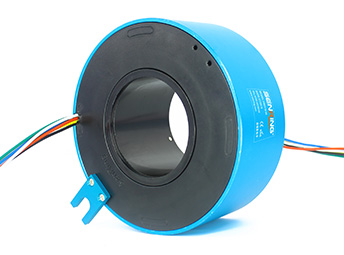

H60130 Series（Hollow Shaft）Through Hole Slip Ring

Features

Advanced multi-point contact brush technology ensures reliable contact with low friction;

support 2~12circuits power /signal,current and channels can be customized;;

Can be customized to combine power/signal transmitting

Support transmitting power with signals ;

Integrated structure design, easy installation.

model	circuits		Length L（mm）	model	circuits		Length L（mm）
	10A	signal or 0-5A			10A	signal or 0-5A
H60130-02S	0	2	36	H60130-36S	0	36	172
H60130-0210	2	0	36	H60130-0610-30S	6	30	172
H60130-03S	0	3	40	H60130--1210-24S	12	24	172
H60130-0310	3	0	40	H60130-3610	36	0	172
H60130-06S	0	6	52	H60130-42S	0	42	196
H60130-0210-04S	2	4	52	H60130-0610-36S	6	36	196
H60130-0410-02S	4	2	52	H60130-1210-30S	12	30	196
H60130-0610	6	0	52	H60130-4210	42	0	196
H60130-12S	0	12	76	H60130-48S	0	48	220
H60130-0210-10S	2	10	76	H60130-0610-42S	6	42	220
H60130-0310-09S	3	9	76	H60130-1210-36S	12	36	220
H60130-0610-06S	6	6	76	H60130-1810-30S	18	30	220
H60130-0810-04S	8	4	76	H60130-P2410-24S	24	24	220
H60130-1010-02S	10	2	76	H60130-4810	48	0	220
H60130-1210	12	0	76	H60130-60S	0	60	268
H60130-18S	0	180	100	H60130-0610-54S	6	54	268
H60130-0210-16S	2	16	100	H60130-0910-51S	9	51	268
H60130-0410-14S	4	14	100	H60130-1210-48S	12	48	268
H60130-0610-12S	6	12	100	H60130-2410-36S	24	36	268
H60130-0810-10S	8	10	100	H60130-72S	0	72	316
H60130-1010-08S	10	8	100	H60130-1210-60S	12	60	316
H60130-1210-06S	12	6	100	H60130-2410-48S	24	48	316
H60130-1410-04S	14	4	100	H60130-3610-36S	36	36	316
H60130-1610-02S	16	2	100	H60130-84S	0	84	364
H60130-24S	0	24	124	H60130-1210-72S	12	72	364
H60130-0410-20S	4	20	124	H60130-2410-60S	24	60	364
H60130-0610-18S	6	18	124	H60130-3610-48S	36	48	364
H60130-1210-12S	12	12	124	H60130-96S	0	96	412
H60130-1810-06S	18	6	124	H60130-1210-84S	12	84	412
H60130-2410	24	0	124	H60130-2410-72S	24	72	412
H60130-30S	0	30	148	H60130-3610-60S	36	60	412
H60130-0610-24S	6	24	148	H60130-4210-54S	42	54	412
H60130-1210-18S	12	18	148	H60130-108S	0	108	460
H60130-1810-12S	18	12	148	H60130-1210-96S	12	96	460
H60130-2410-06S	24	6	148	H60130-2410-84S	24	84	460
H60130-3010	30	0	148	H60130-3610-72S	36	72	460

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Mechanicall parameters
Working Life	refer to slip ring grade table
Rotating speed	refer to slip ring grade table
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	refer to slip ring grade table
Housing Material	AL alloy
Torque	0.05N.m+0.02N.m/6 wire
IP Grade	IP51

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~690VAC/VDC	0~440VAC/VDC
Insolution Resistance	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Lead wire Spec.	AWG17# Silver-plated teflon	AWG22# Silver-plated teflon
lead wire length	standard length 300mm(can be customized)
Dielectric Strength	800VAC@50Hz,60s
Electrical Noise	< 0.01Ω

Grade code	Max rotating speed	Working Life	Contact Material
C(Standard)	250RPM	20 millions revolutions	precious metal
D(Industrical)	600RPM	80 millions revolutions	precious metal
H(High Quality)	1000RPM	150 millions revolutions	gold alloy
