Through hole slip ring

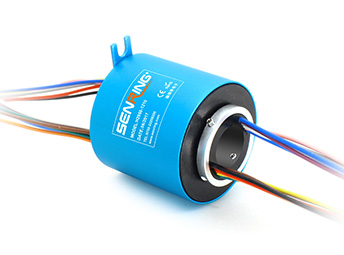

H0729 Series Mini Through Hole Slip Ring

hole size 7mm ,OD 29mm

H0729 series is mini hole size through bore slip ring , hole size 7mm(suitable for shaft≤7mm),OD 29mm。It can stably transmit 2~12 circuits [email protected] or [email protected] and applied to any devices where requires to transmit power and signals when 360 rotating.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Support 2~12circuits power/signal(2A,N*2A),customized for more circuits or large current;
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h0729 series H0729 Series Mini Through Hole Slip Ring slip ring description
Drawing
h0729 series H0729 Series Mini Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits ( signal or 0-2A) Length L(mm)
0~10A signal or 0~2A
H0729-02S 3 0 30
H0729-0210 2 0 30
H0729-04S 0 4 30
H0729-0210-04S 2 4 30
H0729-0610 6 0 30
H0729-12S 0 12 46.8
H0729-0410-08S 4 8 46.8
H0729-1210 12 0 46.8

* Remark: circuits can be combined in parallel for bigger current, N circuits of 2A to get N*2A, such as 2 circuits of 2A in parallel for 4A use.

Technical Specification of h0729 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Insolution Resistance ≥500MΩ/500VDC ≥500MΩ/500VDC
Lead wire Spec. AWG28# Silver-plated teflon AWG28# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h0729 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 60 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
