SENRING
Through hole slip ring

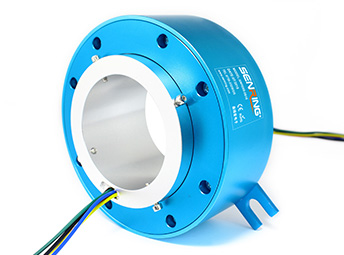

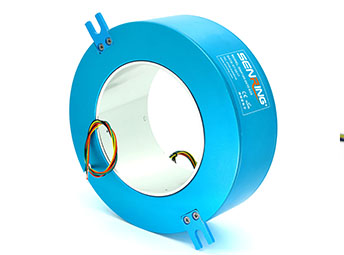

H90185 Series(Hollow Shaft)Through Hole Slip Ring

hole size: 90mm, OD: 158mm

H90185 series is standard through hole slip ring , hole size 90mm(suitable for shaft≤90mm),OD 158mm。It can stably transmit 2~36 circuits [email protected] or 2~108 circuits [email protected] and applied to any devices where requires to transmit power and signals when 360

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
support 1~108circuits power /signal,current and channels can be customized;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h90185 series H90185 Series(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h90185 series H90185 Series(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H90185-02S 0 2 48 H90185-36S 0 36 184
H90185-0210 2 0 48 H90185--0610-30S 6 30 184
H90185-03S 0 3 52 H90185-1210-24S 12 24 184
H90185-0310 3 0 52 H90185-3610 36 0 184
H90185-06S 0 6 64 H90185-42S 0 42 208
H90185-0210-04S 2 4 64 H90185-0610-36S 6 36 208
H90185-0410-02S 4 2 64 H90185-1210-30S 12 30 208
H90185-0610 6 0 64 H90185-4210 42 0 208
H90185-12S 0 12 88 H90185-48S 0 48 232
H90185-0210-10S 2 10 88 H90185-0610-42S 6 42 232
H90185-0310-09S 3 9 88 H90185-1210-36S 12 36 232
H90185-0610-06S 6 6 88 H90185-1810-30S 18 30 232
H90185-0810-04S 8 4 88 H90185-P2410-24S 24 24 232
H90185-1010-02S 10 2 88 H90185-4810 48 0 232
H90185-1210 12 0 88 H90185-60S 0 60 280
H90185-18S 0 18 112 H90185-0610-54S 6 54 280
H90185-0210-16S 2 16 112 H90185-0910-51S 9 51 280
H90185-0410-14S 4 14 112 H90185-1210-48S 12 48 280
H90185-0610-12S 6 12 112 H90185-2410-36S 24 36 280
H90185-0810-10S 8 10 112 H90185-72S 0 72 328
H90185-1010-08S 10 8 112 H90185-1210-60S 12 60 328
H90185-1210-06S 12 6 112 H90185-2410-48S 24 48 328
H90185-1410-04S 14 4 112 H90185-3610-36S 36 36 328
H90185-1610-02S 16 2 112 H90185-84S 0 84 376
H90185-24S 0 24 136 H90185-1210-72S 12 72 376
H90185-0410-20S 4 20 136 H90185-2410-60S 24 60 376
H90185-0610-18S 6 18 136 H90185-3610-48S 36 48 376
H90185-1210-12S 12 12 136 H90185-96S 0 96 426
H90185-1810-06S 18 6 136 H90185-1210-84S 12 84 426
H90185-2410 24 0 136 H90185-2410-72S 24 72 426
H90185-30S 0 30 160 H90185-3610-60S 36 60 426
H90185-0610-24S 6 24 160 H90185-4210-54S 42 54 426
H90185-1210-18S 12 18 160 H90185-108S 0 108 472
H90185-1810-12S 18 12 160 H90185-1210-96S 12 96 472
H90185-2410-06S 24 6 160 H90185-2410-84S 24 84 472
H90185-3010 30 0 160 H90185-3610-72S 36 72 472

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h90185 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h90185 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
