SENRING
Through hole slip ring

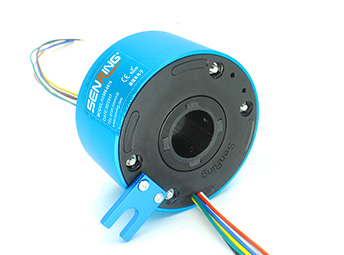

H2586 Series(Hollow Shaft)Through Hole Slip Ring

hole size 25.4mm, OD 86mm

Senring H2586 series through bore slip ring,hole size 25.4mm(suitable for shaft≤25.4mm),OD 86mm,housing material can be use plastic, aluminum alloy or stainless,is ingergal precision slip ring。It can stably transmit 2~36 circuits power@10A or 2~72 circuit

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmitting power(each 10A,N circuits of 10A to get N*10A) with signals;
Max rotating speed : 400RPM,800RPM,1200RPM(optional);
Can be customized to combine power/signal transmitting;
Standard product, stocks available;
Integrated structure design, easy installation.
Part no. description
h2586 series H2586 Series(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h2586 series H2586 Series(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H2586-02S 0 2 32 H2586-1210-12S 12 12 120
H2586-0210 2 0 32 H2586-1810-06S 18 6 120
H2586-03S 0 3 36 H2586-2410 24 0 120
H2586-0310 3 0 36 H2586-30S 0 30 144
H2586-06S 0 6 48 H2586-0610-24S 6 24 144
H2586-0210-04S 2 4 48 H2586-1210-18S 12 18 144
H2586-0410-02S 4 2 48 H2586-1810-12S 18 12 144
H2586-0610 6 0 48 H2586-2410-06S 24 6 144
H2586-12S 0 12 72 H2586-3010 30 0 144
H2586-0210-10S 2 10 72 H2586-36S 0 36 168
H2586-0310-09S 3 9 72 H2586-0610-30S 6 30 168
H2586-0610-06S 6 6 72 H2586-1210-24S 12 24 168
H2586-0810-04S 8 4 72 H2586-3610 36 0 168
H2586-1010-02S 10 2 72 H2586-42S 0 42 192
H2586-1210 12 0 72 H2586-0610-36S 6 36 192
H2586-18S 0 18 96 H2586-1210-30S 12 30 192
H2586-0210-16S 2 16 96 H2586-48S 0 48 216
H2586-0410-14S 4 14 96 H2586-0610-42S 6 42 216
H2586-0610-12S 6 12 96 H2586-1010-38S 10 38 216
H2586-0810-10S 8 10 96 H2586-1210-36S 12 36 216
H2586-1010-08S 10 8 96 H2586-1810-30S 18 30 216
H2586-1210-06S 12 6 96 H2586-2410-24S 24 24 216
H2586-1410-04S 14 4 96 H2586-60S 0 60 264
H2586-1610-02S 16 2 96 H2586-0610-54S 6 54 264
H2586-24S 0 24 120 H2586-1010-50S 10 50 264
H2586-0410-20S 4 20 120 H2586-1210-48S 12 48 264
H2586-0610-18S 6 18 120 H2586-72S 0 72 312

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h2586 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~690VAC/VDC 0~440VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical Noise < 0.01Ω

h2586 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
