SENRING
Through hole slip ring

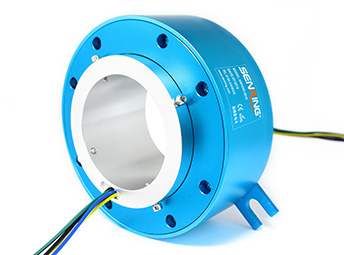

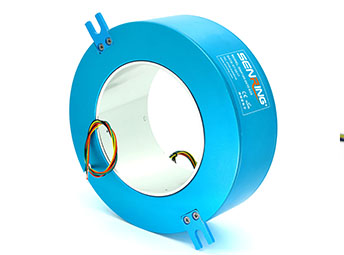

H80158 Series(Hollow Shaft)Through Hole Slip Ring

hole size: 80mm ,OD: 158mm

Senring H80158 series through bore slip ring,hole size 80mm(suitable for shaft≤80mm),OD 158mm,housing material can be use plastic, aluminum alloy or stainless,it is ingergal precision slip ring。It can stably transmit 2~108 circuits [email protected] or [email protected]

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
support 1~108circuits power /signal,current and channels can be customized;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h80158 series H80158 Series(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h80158 series H80158 Series(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H80158-02S 0 2 42 H80158-36S 0 36 178
H80158-0210 2 0 42 H80158--0610-30S 6 30 178
H80158-03S 0 3 46 H80158-1210-24S 12 24 178
H80158-0310 3 0 46 H80158-3610 36 0 178
H80158-06S 0 6 58 H80158-42S 0 42 202
H80158-0210-04S 2 4 58 H80158-0610-36S 6 36 202
H80158-0410-02S 4 2 58 H80158-1210-30S 12 30 202
H80158-0610 6 0 58 H80158-4210 42 0 202
H80158-12S 0 12 82 H80158-48S 0 48 226
H80158-0210-10S 2 10 82 H80158-0610-42S 6 42 226
H80158-0310-09S 3 9 82 H80158-1210-36S 12 36 226
H80158-0610-06S 6 6 82 H80158-1810-30S 18 30 226
H80158-0810-04S 8 4 82 H80158-P2410-24S 24 24 226
H80158-1010-02S 10 2 82 H80158-4810 48 0 226
H80158-1210 12 0 82 H80158-60S 0 60 274
H80158-18S 0 18 106 H80158-0610-54S 6 54 274
H80158-0210-16S 2 16 106 H80158-0910-51S 9 51 274
H80158-0410-14S 4 14 106 H80158-1210-48S 12 48 274
H80158-0610-12S 6 12 106 H80158-2410-36S 24 36 274
H80158-0810-10S 8 10 106 H80158-72S 0 72 322
H80158-1010-08S 10 8 106 H80158-1210-60S 12 60 322
H80158-1210-06S 12 6 106 H80158-2410-48S 24 48 322
H80158-1410-04S 14 4 106 H80158-3610-36S 36 36 322
H80158-1610-02S 16 2 106 H80158-84S 0 84 370
H80158-24S 0 24 130 H80158-1210-72S 12 72 370
H80158-0410-20S 4 20 130 H80158-2410-60S 24 60 370
H80158-0610-18S 6 18 130 H80158-3610-48S 36 48 370
H80158-1210-12S 12 12 130 H80158-96S 0 96 418
H80158-1810-06S 18 6 130 H80158-1210-84S 12 84 418
H80158-2410 24 0 130 H80158-2410-72S 24 72 418
H80158-30S 0 30 154 H80158-3610-60S 36 60 418
H80158-0610-24S 6 24 154 H80158-4210-54S 42 54 418
H80158-1210-18S 12 18 154 H80158-108S 0 108 466
H80158-1810-12S 18 12 154 H80158-1210-96S 12 96 466
H80158-2410-06S 24 6 154 H80158-2410-84S 24 84 466
H80158-3010 30 0 154 H80158-3610-72S 36 72 466

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h80158 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h80158 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
