Through hole slip ring

H1532 Series Hole Size 15mm Mini Through Hole Slip Ring

hole size 15mm ,OD 32.8mm

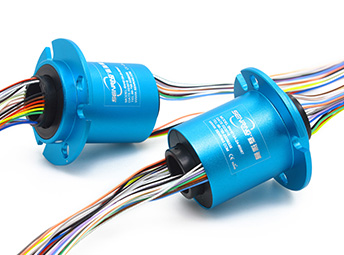

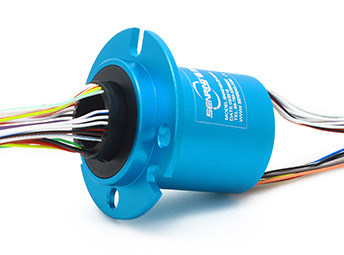

Senring H1532 series is mini hole size through bore slip ring,hole size 15mm(suitable for shaft≤15mm),OD 32.8mm。it is ingergal precision slip ring,can stably transmit 6~24 circuits power@10A or signal@2A and applied to any devices where requires to transm

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Max rotating speed : 250RPM,600RPM,1000RPM(optional);;
Standard model supports 6-24 circuits signal(0~2A);
Can be customized to combine power/signal transmitting
Contact materil used precious metal,ensure the stablity and working life.;
More smooth rotation,lower torque and lower dynamic resistance;
Part no. description
h1532 series H1532 Series Hole Size 15mm Mini Through Hole Slip Ring slip ring description
Drawing
h1532 series H1532 Series Hole Size 15mm Mini Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits ( signal or 0-2A) Length L(mm)
H1532-06S 6 41.7
H1532-12S 12 41.7
H1532-18S 18 41.7
H1532-24S 24 41.7

* Remark: circuits can be combined in parallel for bigger current, N circuits of 2A to get N*2A, such as 2 circuits of 2A in parallel for 4A use.

Technical Specification of h1532 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Insolution Resistance ≥500MΩ/500VDC ≥500MΩ/500VDC
Lead wire Spec. AWG28# Silver-plated teflon AWG28# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical Noise < 0.01Ω
h1532 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
