Through hole slip ring

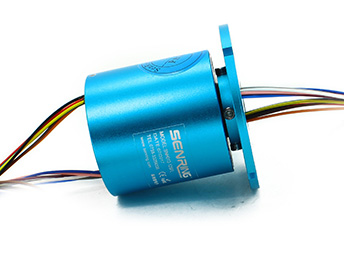

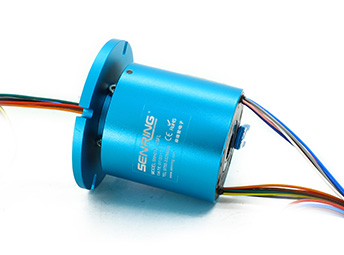

H1256F Series Miniature Through Hole Slip Ring

hole size 12.7mm ,OD 56mm

H1256F series through bore slip ring rotor Flange installation, hole size 12.7mm(suitable for shaft≤12.7mm),OD 56mm。It can stably transmit 2~12 circuits [email protected] or [email protected] and applied to any devices where requires to transmit power and signals when 36

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Support 2~12circuits power/signal(2A,N*2A),customized for more circuits or large current;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h1256f series H1256F Series Miniature Through Hole Slip Ring slip ring description
Drawing
h1256f series H1256F Series Miniature Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Lengtd L(mm) model circuits Lengtd L(mm)
10A signal or 0-5A 10A signal or 0-5A
H1256F-02S 0 2 27 H1256F-1010-08S 10 8 71.5
H1256F-0210 2 0 27 H1256F-1210-06S 12 6 71.5
H1256F-03S 0 3 30 H1256F-1410-04S 14 4 71.5
H1256F-0310 3 0 30 H1256F-1610-02S 16 2 71.5
H1256F-06S 0 6 38 H1256F-24S 0 24 88.5
H1256F-0210-04S 2 4 38 H1256F-0410-20S 4 20 88.5
H1256F-0410-02S 4 2 38 H1256F-0610-18S 6 18 88.5
H1256F-0610 6 0 38 H1256F-1210-12S 12 12 88.5
H1256F-12S 0 12 55 H1256F-1810-06S 18 6 88.5
H1256F-0210-10S 2 10 55 H1256F-2410 24 0 88.5
H1256F-0310-09S 3 9 55 H1256F-30S 0 30 104
H1256F-0610-06S 6 6 55 H1256F-0210-28S 2 28 104
H1256F-0810-04S 8 4 55 H1256F-0410-24S 4 26 104
H1256F-1010-02S 10 2 55 H1256F-0610-24S 6 24 104
H1256F-1210 12 0 55 H1256F-36S 0 36 122
H1256F-18S 0 18 71.5 H1256F-0410-32S 4 32 122
H1256F-0210-16S 2 16 71.5 H1256F-0610-30S 6 30 122
H1256F-0410-14S 4 14 71.5 H1256F-42S 0 42 140
H1256F-0610-12S 6 12 71.5 H1256F-0410-38S 4 38 140
H1256F-0810-10S 8 10 71.5 H1256F-48S 0 48 156

* Remark: circuits can be combined in parallel for bigger current, N circuits of 2A to get N*2A, such as 2 circuits of 2A in parallel for 4A use.

Technical Specification of h1256f series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~440VAC/VDC 0~440VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h1256f Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 60 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
