SENRING
Through hole slip ring

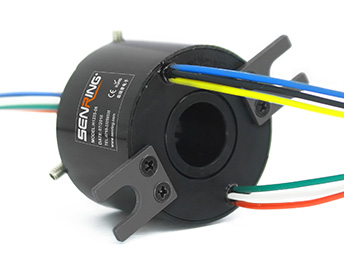

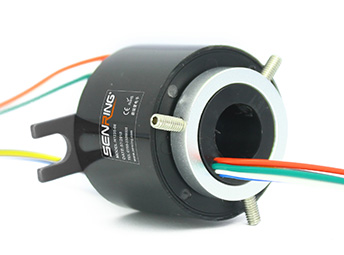

H1235 Series Mini Through Hole Slip Ring

hole size 12.7mm ,OD 35mm

Senring H1235 series is mini hole size through bore slip ring,hole size 12.7mm(suitable for shaft≤12.7mm),OD 35mm。it is mini hole ingergal precision slip ring,It can stably transmit 2~12 circuits power@10A or signal@5A and applied to any devices where req

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard current is 5A (can be paralleling wires use as 5A/10A);
Max rotating speed : 250RPM,600RPM,1000RPM(optional);
standard model 2-24circuits signal(each 5A) or 2~4circuits power(each 10A),customized for more circuits or large current;
Contact materil used precious metal,ensure the stablity and working life.;
More smooth rotation,lower torque and lower dynamic resistance;
Part no. description
h1235 series H1235 Series Mini Through Hole Slip Ring slip ring description
Drawing
h1235 series H1235 Series Mini Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits ( signal or 0-5A) Length L(mm)
H1235-0205 2 25
H1235-0305 3 25
H1235-0405 4 25
H1235-0605 6 25
H1235-0805 8 36.4
H1235-1005 10 36.4
H1235-1205 12 36.4

* Remark: circuits can be combined in parallel for bigger current, N circuits of 5A to get N*5A, such as 2 circuits of 5A in parallel for 4A use.

Technical Specification of h1235 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Insolution Resistance ≥500MΩ/500VDC ≥500MΩ/500VDC
Lead wire Spec. AWG22# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical Noise < 0.01Ω

h1235 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
