Through hole slip ring

H1256 Series(Hollow Shaft)Through Hole Slip Ring

hole size 12.7mm ,OD 56mm

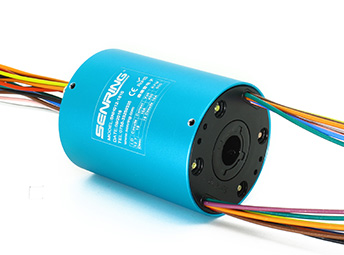

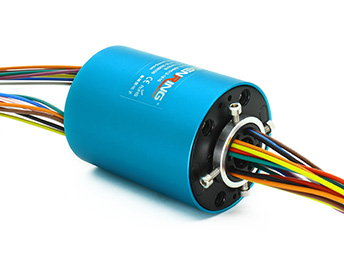

Senring H1256 series through bore slip ring,hole size 12.7mm(suitable for shaft≤12.7mm),OD 56mm,housing material can be use plastic, aluminum alloy or stainless,it is ingergal precision slip ring。H1256 series can stably transmit 2~12 circuits [email protected] or

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
IP grade IP51(can be customized IP51~IP68);
Standard model supports 1-24 circuits power(0~10A) or 1~48 circuits signal(0~5A),current and channels can be customized;
Higher rotating accuracy,stable performance, long lifertime ;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h1256 series H1256 Series(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h1256 series H1256 Series(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
<
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H1256-02S 0 2 27 H1256-1010-08S 10 8 71.5
H1256-0210 2 0 27 H1256-1210-06S 12 6 71.5
H1256-03S 0 3 30 H1256-1410-04S 14 4 71.5
H1256-0310 3 0 30 H1256-1610-02S 16 2 71.5
H1256-06S 0 6 38 H1256-24S 0 24 88.5
H1256-0210-04S 2 4 38 H1256-0410-20S 4 20 88.5
H1256-0410-02S 4 2 38 H1256-0610-18S 6 18 88.5
H1256-0610 6 0 38 H1256-1210-12S 12 12 88.5
H1256-12S 0 12 55 H1256-1810-06S 18 6 88.5
H1256-0210-10S 2 10 55 H1256-2410 24 0 88.5
H1256-0310-09S 3 9 55 H1256-30S 0 30 104
H1256-0610-06S 6 6 55 H1256-0210-28S 2 28 104
H1256-0810-04S 8 4 55 H1256-0410-24S 4 26 104
H1256-1010-02S 10 2 55 H1256-0610-24S 6 24 104
H1256-1210 12 0 55 H1256-36S 0 36 122
H1256-18S 0 18 71.5 H1256-0410-32S 4 32 122
H1256-0210-16S 2 16 71.5 H1256-0610-30S 6 30 122
H1256-0410-14S 4 14 71.5 H1256-42S 0 42 140
H1256-0610-12S 6 12 71.5 H1256-0410-38S 4 38 140
H1256-0810-10S 8 10 71.5 H1256-48S 0 48 156
Technical Specification of h1256 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~440VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h1256 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 60 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
