1080p Hd-sdi Slip Ring

1080p Hd-sdi Slip Ring

SENRING's SHD HD-SDI slip ring is a new generation product which integrates SDI signal transmission into standard capsule slip ring and widely used in HD camera and security industry. it can be transmit 1-24 circuits power of data signal

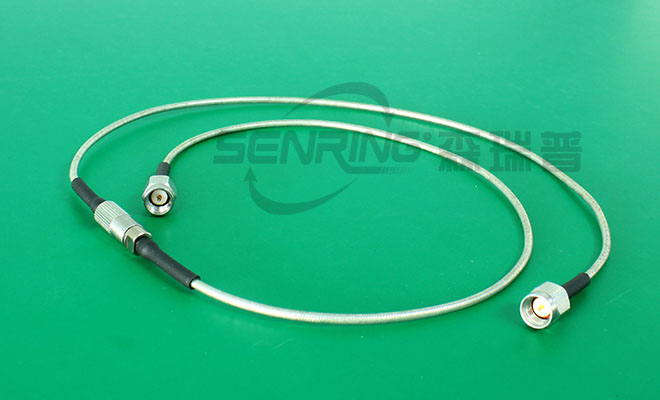

  1. 1080p Hd-sdi Slip Ring image 11080p Hd-sdi Slip Ring image 1

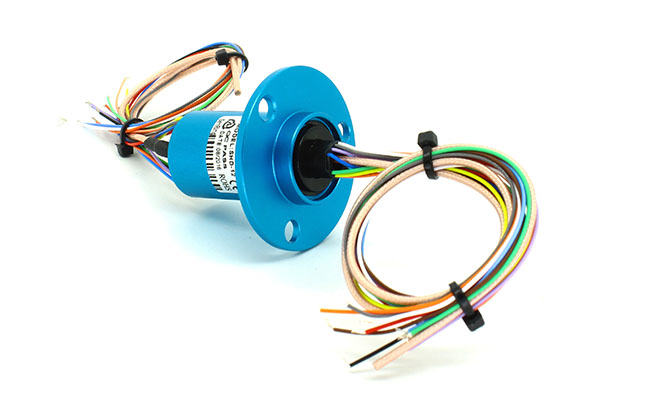

  2. 1080p Hd-sdi Slip Ring image 21080p Hd-sdi Slip Ring image 2

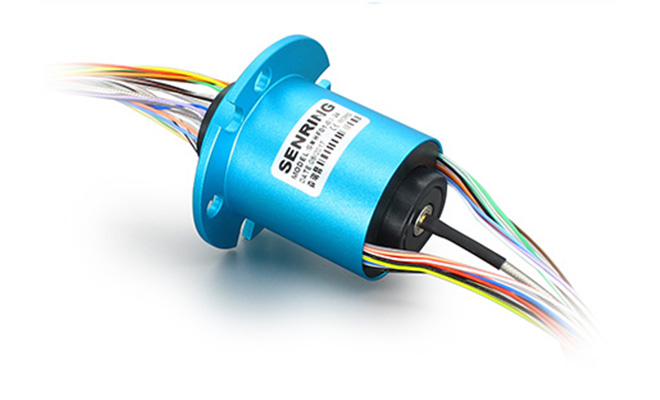

  3. 1080p Hd-sdi Slip Ring image 31080p Hd-sdi Slip Ring image 3
Features
Provides plastic shell and MMCX.SMA.coaxial connector
Transmit 24 circuits signal current
can combine with power or pneumatic/hydraulic slip ring
Contact materials:precious metal +gold plating which ensures abrasion resistant and anti-Oxidant for long working life
The flange of dimension,outside diameter,direction can be customized as per request
Part no. description
  O - ID OD - power circuits - signal circuits
O:HD-SDI(1080P) slip ring
solid,OD 22mm~56mm
Examples:
022:OD 22mm; 032:OD 32.8mm; 056:OD 56mm
Examples:
0610:6 circuits@10A; 1220:12 circuits@20A
Examples:
06S:6 circuits signal@2A(5A options)
12S:12 circuits signal@2A(5A options)
model list
Model PDF 1080P HD-SDI channels no. signal circuits(0~2A) power circuits(10A) Frequency rate OD(mm) Length(mm)
1 channel 8 0 DC-3GHz 22 25.5
1 channel 12 0 DC-3GHz 22 25.5
1 channel 24 0 DC-3GHz 32.8 46.7
1 channel 2~48 2~24 DC-3GHz 56 26.8~155.6

*If no standard models suitable , contact us for custom solutions,E-mail: [email protected] [email protected]

Color code of Lead Wire
ring no. color ring no. color
1 black 13 WHT/BLK
2 brown 14 WHT/BRN
3 red 15 WHT/RED
4 orange 16 WHT/ORG
5 yellow 17 WHT/YEL
6 green 18 WHT/GRN
7 blue 19 WHT/BLU
8 purple 20 WHT/PUR
9 grey 21 WHT/GRY
10 white 22 BLK/RED
11 pink 23 BLK/BRN
12 lightblue 24 transparent
