1080p Hd-sdi Slip Ring

O032-24 Series HD Slip Ring(1 Channel 1080P HD Signal @ 24 Circuits 2a Current)

1 channel (1080P)HD @ 24 circuits(0~2A)signal;

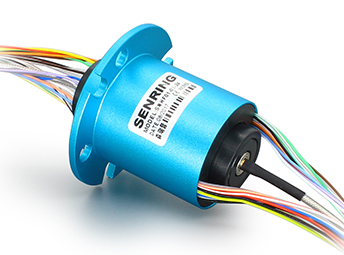

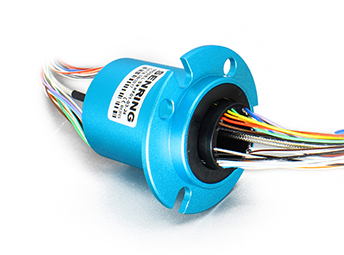

SENRING O032-24 series HD video slip ring,can transmit 1 channel HD video signal ,DC~3GHz coaxial HD signal or 12 circuits 2A signal when 360° roating,rated speed:100RPM.SHD-24 series HD slip ring,OD 32.8mm, length 47,MMCX、SMA coaxial connector optional.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support DC~3GHz,can stable transmit 1080P HD vedio signal;
Solid,with flange;
Can transmit 1 channel HD video slip ring +12 circuits 2A power/signal when 360° rotating;
OD:32.8mm,length:47mm;
Can be combined to transmit HF signal, control signal, video signal and other signals;
Excellent electrical transmission and rotation performance;
Typical Application:HD security monitoring, photographic camera, HD camera and other fields.
Part no. description
o032-24 series O032-24 Series HD Slip Ring(1 Channel 1080P HD Signal @ 24 Circuits 2a Current) slip ring description
Drawing
o032-24 series O032-24 Series HD Slip Ring(1 Channel 1080P HD Signal @ 24 Circuits 2a Current) slip ring Drawing
Technical Specification of o032-24 series slip ring
Frequency rate DC-3GHz
Insertion loss fluctuation +/-0.05dB
Specification RG405
VSWR ≤1.3
impedance 50Ω
Mechanical Data
spec data
working life 10millions for ref(depends on working conditions)
Rotating speed 250RPM continously
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
Insertion loss 0.65dB/1GHz Max
return loss -18 dB/1GHz Max
Max speed 50RPM
VSWR fluctuation +/-0.05
Style BNC/F (Options)
Electrical Data
spec data
voltage range 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC
lead wire spec. AWG26# Silver-plated teflon
lead wire length standard 250mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
Electrical Noise < 10mΩ
CE certificate Yes
material RoHS compliant
