1080p Hd-sdi Slip Ring

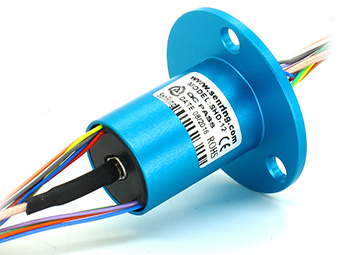

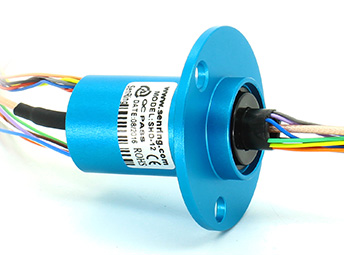

O022-08 Series HD-SDI(1080P) HD Slip Ring

1 channel (1080P) HD+8 circuits(0~2A) signal;

Adopting USA imported components and high frequency signal processing technology,1 channel DC~3GHz high speed data,used for transmitting 1080P HD signals(downward compatibility),can be combined to transmit 8 circuits signal.Advantages:Stable transmission

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support DC~3GHz,can stable transmit 1080P HD vedio signal;
Solid,with flange;
Can be combined transmit 1~48 circuits power current and signal;
Adopt US military surface treatment,hard gold plating treatment,make sure low electrical noise and long working life;
Typical application:security monitoring (HD camera), microwave antenna, wifi antenna, etc.
Part no. description
o022-08 series O022-08 Series HD-SDI(1080P) HD Slip Ring slip ring description
Drawing
o022-08 series O022-08 Series HD-SDI(1080P) HD Slip Ring slip ring Drawing
Technical Specification of o022-08 series slip ring
Frequency rate DC-3GHz
Insertion loss fluctuation +/-0.05dB
Specification RG405
VSWR ≤1.3
impedance 50Ω
Mechanical Data
spec data
working life 10millions for ref(depends on working conditions)
Rotating speed 250RPM continously
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
torque s0.1N.m;+0.03N.m/6 circuits
Insertion loss 0.65dB/1GHz Max
return loss -18 dB/1GHz Max
Max speed 50RPM
VSWR fluctuation +/-0.05
Style BNC/F (Options)
Electrical Data
spec data
voltage range 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC
lead wire spec. AWG26# Silver-plated teflon
lead wire length standard 250mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
Electrical Noise < 10mΩ
CE certificate Yes
housing material aluminum alloy
material RoHS compliant
