1080p Hd-sdi Slip Ring

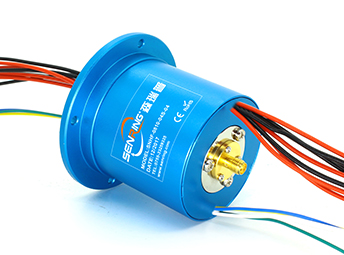

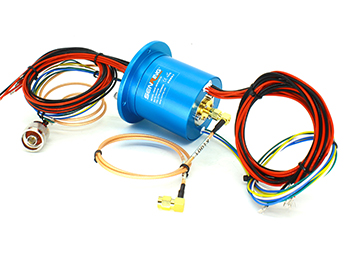

O056 Series HD-SDI(1080P) HD Slip Ring

1 channel (1080P) HD+2~48 circuits signal;

Adopting USA imported components and high frequency signal processing technology,1 channel of DC~3GHz high speed data,used for transmitting 1080P HD signals(downward compatibility),can be combined to transmit 0~48 circuits power/signal.Advantages:Stable t

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support DC~3GHz,can stable transmit 1080P HD vedio signal;
Solid,with flange;.
Can be combined to transmit 1~48 circuits power/signal;
Adopt US military surface treatment,hard gold plating treatment,make sure low electrical noise and long working life;
Typical application: security monitoring (HD camera), microwave antenna, wifi antenna, etc.
Part no. description
o056 series O056 Series HD-SDI(1080P) HD Slip Ring slip ring description
Drawing
o056 series O056 Series HD-SDI(1080P) HD Slip Ring slip ring Drawing
Standard model list
Model HD-SDI 10A signal/5A lengtd (mm)
O056-02S 1 channel 0 2 26.8
O056-0210 1 channel 2 0 26.8
O056-03S 1 channel 0 3 29.6
O056-0310 1 channel 3 0 29.6
O056-06S 1 channel 0 6 38
O056-0210-04S 1 channel 2 4 38
O056-0410-02S 1 channel 4 2 38
O056-0610 1 channel 6 0 38
O056-12S 1 channel 0 12 54.8
O056-0210-10S 1 channel 2 10 54.8
O056-0310-09S 1 channel 3 9 54.8
O056-0610-06S 1 channel 6 6 54.8
O056-0810-04S 1 channel 8 4 54.8
O056-1010-02S 1 channel 10 2 54.8
O056-1210 1 channel 12 0 54.8
O056-18S 1 channel 0 18 71.5
O056-0210-16S 1 channel 2 16 71.5
O056-0410-14S 1 channel 4 14 71.5
O056-0610-12S 1 channel 6 12 71.5
O056-0810-10S 1 channel 8 10 71.5
O056-1010-08S 1 channel 10 8 71.5
O056-1210-06S 1 channel 12 6 71.5
O056-1410-04S 1 channel 14 4 71.5
O056-1610-02S 1 channel 16 2 71.5
O056-24S 1 channel 0 24 88.4
O056-0410-20S 1 channel 4 20 88.4
O056-0610-18S 1 channel 6 18 88.4
O056-1210-12S 1 channel 12 12 88.4
O056-1810-06S 1 channel 18 6 88.4
O056-2410 1 channel 24 0 88.4
O056-30S 1 channel 0 30 105.2
O056-0210-28S 1 channel 2 28 105.2
O056-0410-26S 1 channel 4 26 105.2
O056-0610-24S 1 channel 6 24 105.2
O056-36S 1 channel 0 36 122
O056-0410-32S 1 channel 4 32 122
O056-0610-30S 1 channel 6 30 122
O056-42S 1 channel 0 42 138.8
O056-0410-38S 1 channel 4 38 138.8
O056-48S 1 channel 0 48 155.6
Technical Specification of o056 series slip ring
Frequency rate DC-3GHz
Insertion loss fluctuation +/-0.05dB
Specification RG405
VSWR ≤1.3
impedance 50Ω
Mechanical Data
spec data
working life 10millions for ref(depends on working conditions)
Rotating speed 250RPM continously
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
Insertion loss 0.65dB/1GHz Max
return loss -18 dB/1GHz Max
Max speed 50RPM
VSWR fluctuation +/-0.05
Style BNC/F (Options)
Electrical Data
spec data
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG26# Silver-plated teflon
lead wire length standard 250mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
Electrical Noise < 10mΩ
CE certificate Yes
material RoHS compliant
