Gigabit Ethernet Slip Ring

E Series (1000m) Gigabit Ethernet Slip Ring(Rj45 Slip Ring)

Ethernet slip ring specailly designed for 250Mhz frequency to transmit 100M/1000M Ethernet signals,with advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss

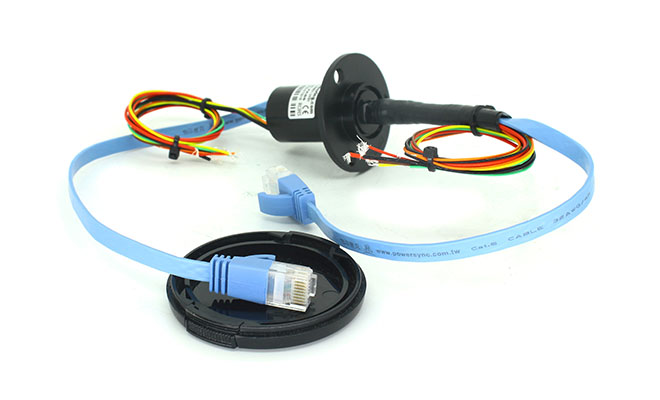

  1. E Series (1000m) Gigabit Ethernet Slip Ring(Rj45 Slip Ring) image 1E Series (1000m) Gigabit Ethernet Slip Ring(Rj45 Slip Ring) image 1

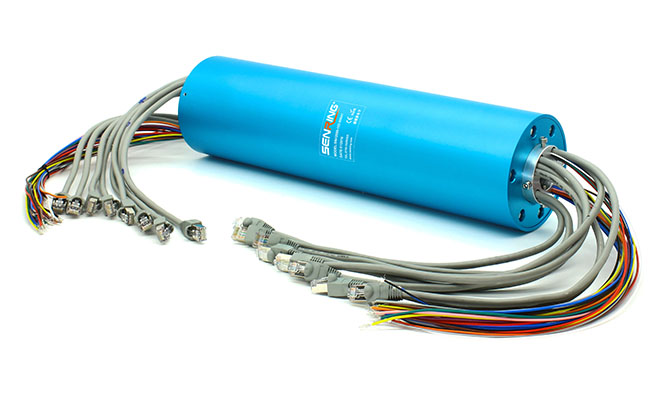

  2. E Series (1000m) Gigabit Ethernet Slip Ring(Rj45 Slip Ring) image 2E Series (1000m) Gigabit Ethernet Slip Ring(Rj45 Slip Ring) image 2

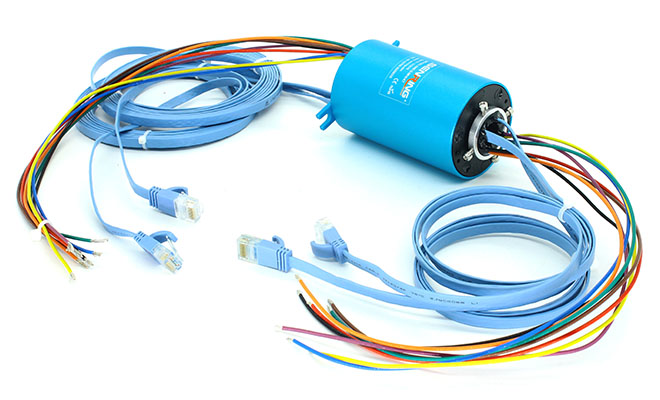

  3. E Series (1000m) Gigabit Ethernet Slip Ring(Rj45 Slip Ring) image 3E Series (1000m) Gigabit Ethernet Slip Ring(Rj45 Slip Ring) image 3
Features
with RJ45 connectors(Ethernet slip ring also known as rj45 slip ring)
standard Ethernet wires connection
Max 8channels Ethernet in one slip ring
can combine with power or pneumatic/hydraulic slip ring
transmit 10M / 100M / 1000M BaseT Ethernet
Contact materials:precious metal +gold plating which ensures abrasion resistant and anti-Oxidant for long working life
50% Ethernet slip rings are customized;
Part no. description
E - ID OD - Ethernet channel No. - power circuits - signal circuits - Product grade
E:100M/1000M
Part no. description
M means solid without hole,
H means through hole
Examples:

M022:solid,OD 22mm,
H1256:hole size 12.7mm,OD 56mm
H2586:hole size 25.4mm,OD 86mm
H3899:hole size 38.1mm,OD 99mm
H50119:hole size 50mm,OD 119mm
Examples:
01:1 channels 100M/1000M baseT
02:2 channels 100M/1000M baseT
Examples:
0610:6 circuits@10A
1210:12 circuits@10A
Examples:
06S:6 circuits signal
@2A(5A options)
12S:12 circuits signal
@2A(5A options)
Examples:
Cstandard
D:industrical
For example

EM022-12:E means (1000M) Part no. description,M022:solid,OD 22mm,"12 " pls refer to model list ;

EH1256-01-0310-04S:E means (1000M) Part no. description,H1256:hole size 12.7mm,OD 56mm,01:1 channels 100M/1000M baseT,0310:3 circuits@10A,04S:4 circuits signal@2A(5A options).

model list
Model PDF through hole size OD Ethernet channels no. power/signal circuits no.
solid, without hole 22mm 1∼2 1∼16
12.7mm 56mm 1 1∼24
12.7mm 56mm 2 1∼24
25.4mm 86mm 1 1∼48
25.4mm 86mm 2 1∼48
38.1mm 99mm 1 1∼56
38.1mm 99mm 2 1∼56
50mm 119mm 1 1∼72
50mm 119mm 2 1∼72
Color code of Lead Wire
ring no. color ring no. color
1 black 13 WHT/BLK
2 brown 14 WHT/BRN
3 red 15 WHT/RED
4 orange 16 WHT/ORG
5 yellow 17 WHT/YEL
6 green 18 WHT/GRN
7 blue 19 WHT/BLU
8 purple 20 WHT/PUR
9 grey 21 WHT/GRY
10 white 22 BLK/RED
11 pink 23 BLK/BRN
12 lightblue 24 transparent
