Gigabit Ethernet Slip Ring

EH2586-02 Series 2 Channels Gigabit Ethernet Rotary Joint

2 channels Gigabit Ethernet+1~48 circuits power/signal;

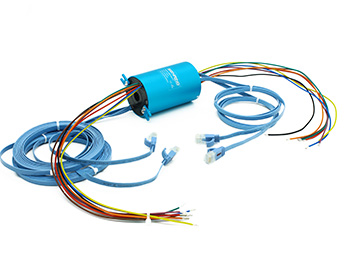

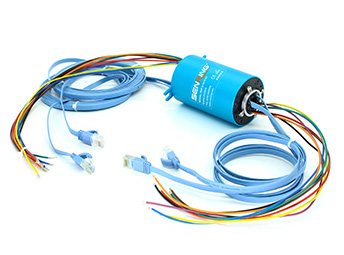

SENRING EH2586-02 series Gigabit Ethernet rotary joint,,with integrated structure, hole 25.4mm, OD 86mm,can tranmit 2 channels Gigabit Ethernet signal accurately when 360° roating,It can be combined to transmit 1~26 circuits power(current 2~20A ) and USB

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard RJ45 male connector,RJ45 female optional;
Can transmit 2 channels Gigabit Ethernet signal steadily,max transmit channels: 8 channels.
Can be combined to transmit 1~26 circuits power/signal;
Can work with the power channel or the gas-liquid rotary joint;
Hole size 25.4mm,OD86mm;
Mainly used for transmitting Ethernet of 10M , 100M , 1000M BaseT;
With advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss,etc.
Part no. description
eh2586-02 series EH2586-02 Series 2 Channels Gigabit Ethernet Rotary Joint slip ring description
Drawing
eh2586-02 series EH2586-02 Series 2 Channels Gigabit Ethernet Rotary Joint slip ring Drawing
Standard model list
Model power/signal circuits no. Ethernet channels no. length L(mm)
signal(0∼2A) power(10A) power(20A)
EH2586-02-02S200296
EH2586-02-0210020296
EH2586-02-08S8002120
EH2586-02-08100802120
EH2586-02-0410-04S4402120
EH2586-02-14S14002144
EH2586-02-141001402144
EH2586-02-20S22002168
EH2586-02-26S26002192

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the channel no. of Ethernet,power and signal,or mix other signals,pls contact the SenRing salesman.

Technical Specification of eh2586-02 series slip ring
Ethernet 2 channels 100M/1000M baseT
Mechanical Data
spec data
working life refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connectors RJ45
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
Electrical Noise <10 Ω
CE certificate yes
Mechanical vibration MIL-STD-810E
Material RoHS compliant

eh2586-02 Grade Table
Grade code Max rotating speed Working Life Contact Material
C:Standard 250RPM 20 millions  precious metal
D:Industrical 600RPM 80 millions
gold-gold
