Gigabit Ethernet Slip Ring

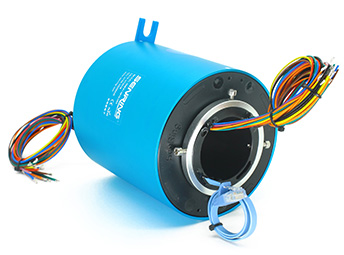

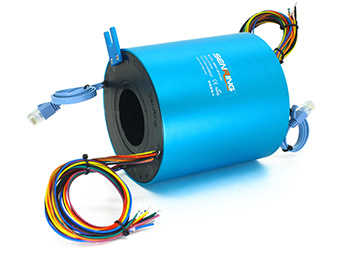

EH50119-02 Series 2 Channels Gigabit Ethernet Slip Ring

2 channel Gigabit Ethernet+1~72 circuits power/signal;

SENRING EH50119-02 series Gigabit Ethernet rotary joint,,with integrated structure, hole 50mm, OD 119mm,can tranmit 2 channels Gigabit Ethernet signal accurately when 360° roating,It can be combined to transmit 1~26 circuits power(current 2~20A ) and USB

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard RJ45 male connector,RJ45 female optional;
Can transmit 2 channels Gigabit Ethernet signal steadilys;
(10M / 100M / 1000M BaseT);Mainly used for transmitting Ethernet of 10M , 100M , 1000M BaseT;
Can work with the power channel or the gas-liquid rotary joint;
Can be combined to transmit 1~48 circuits power/signal;
Hole size 50mm,OD119mm;
With advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss,etc.
Part no. description
eh50119-02 series EH50119-02 Series 2 Channels Gigabit Ethernet Slip Ring slip ring description
Drawing
eh50119-02 series EH50119-02 Series 2 Channels Gigabit Ethernet Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. Ethernet channels no. length L(mm)
signal(0∼2A) power(10A) power(20A)
EH50119-02-02S2002100
EH50119-02-02100202100
EH50119-02-08S8002124
EH50119-02-08200002124
EH50119-02-0410-04S4402124
EH50119-02-14S14002148
EH50119-02-141001402148
EH50119-02-20S22002172
EH50119-02-26S26002196
EH50119-02-32S32002222
EH50119-02-56S56002316

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the channel no. of Ethernet,power and signal,or mix other signals,pls contact the SenRing salesman.

Technical Specification of eh50119-02 series slip ring
Ethernet 2 channels 100M/1000M baseT
Mechanical Data
spec data
working life refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connectors RJ45
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
Electrical Noise <10 Ω
CE certificate yes
Mechanical vibration MIL-STD-810E
Material RoHS compliant
eh50119-02 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard)) 400RPM 20 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
