Gigabit Ethernet Slip Ring

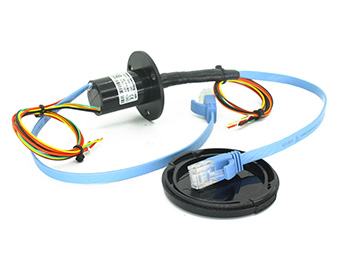

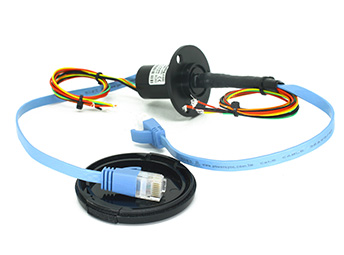

EM022 Series Miniture Gigabit Ethernet Slip Ring

1channels 100M/1000M Ethernet+2~16 circuits power/signal;

SENRING EM022 series Gigabit Ethernet rotary joint,,with integrated structure, solid, OD 22mm,can tranmit 1~2 channels Gigabit Ethernet signal accurately when 360° roating,It can be combined to transmit 1~16 circuits power(current 2~20A ) and USB ,HDMI o

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard RJ45 male connector,RJ45 female optional;
Can transmit 1~2 channels 100M/1000M Ethernet signal steadilys;
Can be combined to transmit 1~16 circuits power/signal;
Solid,OD:22mm;
With advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss,etc.
With US military plating technology and low BER error rate and high signal-to-noise ratio;
Part no. description
em022 series EM022 Series Miniture Gigabit Ethernet Slip Ring slip ring description
Drawing
em022 series EM022 Series Miniture Gigabit Ethernet Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. Ethernet channels no. length L(mm)
signal(2A) power(5A) power(20A) 100M Ethernet 1000M Ethernet
EM022-06 0 0 0 1 0 19
EM022-12 6 0 0 1 0 26
EM022-12V 0 2 0 1 0 26
EM022-12G 0 0 0 0 1 26
EM022-18 12 0 0 1 0 33
EM022-18V 6 2 0 1 0 33
EM022-18X 2 0 2 1 0 33
EM022-18G 6 0 0 0 1 33
EM022-18GV 0 2 0 0 1 33
EM022-24 18 0 0 1 0 40
EM022-24V 12 2 0 1 0 40
EM022-24X 8 0 2 1 0 40
EM022-24G 12 0 0 0 1 40
EM022-24GV 6 2 0 0 1 40
EM022-24GX 2 0 2 0 1 40
EM022-24GG 0 0 0 0 2 40

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the channel no. of Ethernet,power and signal,or mix other signals,pls contact the SenRing salesman.

Technical Specification of em022 series slip ring
Ethernet 1~2 channels 100M/1000M baseT
Mechanical Data
spec data
working life refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
Mechanical vibration MIL-STD-810E
connectors RJ45
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec AWG17#Silver-plated teflon wire AWG22#Silver-plated teflon wire
lead wire length standard 200mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
Electrical Noise <10 Ω
CE certificate yes
Mechanical vibration MIL-STD-810E
material RoHS compliant
material RoHS compliant

em022 Grade Table
Grade code Max rotating speed Working Life Contact Material
C:Standard 250RPM 20 millions precious metal
D:Industrical 600RPM 80 millions
gold-gold
