Gigabit Ethernet Slip Ring

EH50119-01 Series 1 Channel Gigabit Ethernet Slip Ring

1 channel Gigabit Ethernet+1~72 circuits power/signal

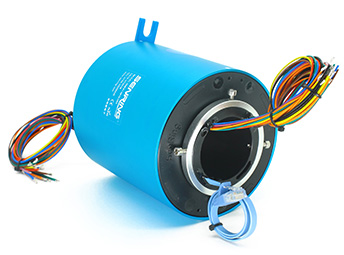

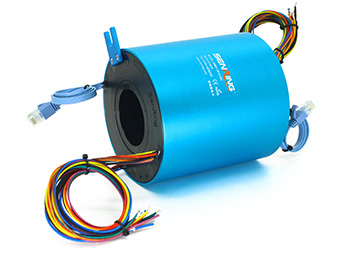

SENRING EH50119-01 series Gigabit Ethernet rotary joint,,with integrated structure, hole 50mm, OD 119mm,can tranmit 1 channel Gigabit Ethernet signal accurately when 360° roating,It can be combined to transmit 1~58 circuits power(current 2~20A ) and USB

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard RJ45 male connector,RJ45 female optional;
Can transmit 1 channel Gigabit Ethernet signal steadily,max transmit channels: 8 channels.;
Can be combined to transmit 1~58 circuits power/signal;
Mainly used for transmitting Ethernet of 10M , 100M , 1000M BaseT;
Can work with the power channel or the gas-liquid rotary joint;
Hole size 50mm,OD119mm;
With advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss,etc.
With US military plating technology and low BER error rate and high signal-to-noise ratio;
Part no. description
eh50119-01 series EH50119-01 Series 1 Channel Gigabit Ethernet Slip Ring slip ring description
Drawing
eh50119-01 series EH50119-01 Series 1 Channel Gigabit Ethernet Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. Ethernet channels no. length L(mm)
signal(0∼2A) power(10A) power(20A)
EH50119-01-0210 0 2 0 1 76
EH50119-01-04S 4 0 0 1 76
EH50119-01-0410 0 4 0 1 76
EH50119-01-0420 0 0 4 1 76
EH50119-01-10S 10 0 0 1 100
EH50119-01-0210-08S 8 2 0 1 100
EH50119-01-0610-04S 4 6 0 1 100
EH50119-01-16S 16 0 0 1 124
EH50119-01-1610 0 16 0 1 124
EH50119-01-0410-12S 12 4 0 1 124
EH50119-01-0810-08S 8 8 0 1 124
EH50119-01-22S 22 0 0 1 148
EH50119-01-0410-18S 18 4 0 1 148
EH50119-01-2210 0 22 0 1 148
EH50119-01-28S 28 0 0 1 172
EH50119-01-40S 40 0 0 1 218
EH50119-01-58S 58 0 0 1 290
Technical Specification of eh50119-01 series slip ring
Ethernet 1 channels 100M/1000M baseT
Mechanical Data
spec data
working life refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connectors RJ45
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
Electrical Noise <10 Ω
CE certificate yes
Mechanical vibration MIL-STD-810E
Material RoHS compliant
eh50119-01 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard)) 400RPM 20 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
