Gigabit Ethernet Slip Ring

EH1256-02 Series Gigabit Ethernet Rotary Joint

2 channels Gigabit Ethernet+2~14 circuits power/signal

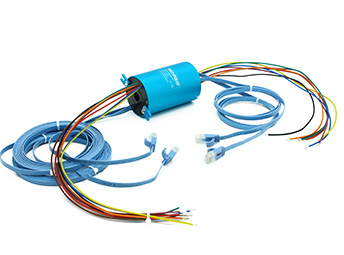

SENRING H1256-02 series Gigabit Ethernet rotary joint,,with integrated structure, hole 12.7mm, OD 56mm,can tranmit 2 channels Gigabit Ethernet signal accurately when 360° roating,It can be combined to transmit 1~14 circuits power(current 2~20A ) and USB

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard RJ45 male connector,RJ45 female optional;
Stable transmitting for 2 channels Gigabit Ethernet signal;
Can be combined to transmit 2~14 circuits power/signal
Hole size 12.7mm,OD56mm;
With advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss,etc.
Part no. description
eh1256-02 series EH1256-02 Series Gigabit Ethernet Rotary Joint slip ring description
Drawing
eh1256-02 series EH1256-02 Series Gigabit Ethernet Rotary Joint slip ring Drawing
Standard model list
Model power/signal circuits no. Ethernet channels no. length L(mm)
signal(0∼2A) power(10A) power(20A)
EH1256-02-02S200271.5
EH1256-02-0210020271.5
EH1256-02-08S800288.5
EH1256-02-0810080288.5
EH1256-02-0410-04S440288.5
EH1256-02-14S14002105.5
EH1256-02-141001402105.5
Technical Specification of eh1256-02 series slip ring
Ethernet 2 channels 100M/1000M baseT
Mechanical Data
spec data
working life refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connectors RJ45
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
Electrical Noise <10 Ω
CE certificate yes
Mechanical vibration MIL-STD-810E
Material RoHS compliant
eh1256-02 Grade Table
Grade code Max rotating speed Working Life Contact Material
C:Standard 250RPM 20 millions  precious metal
D:Industrical 600RPM 80 millions
gold-gold
