SENRING
Through hole slip ring

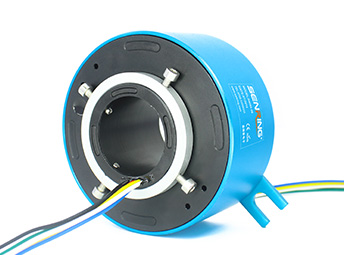

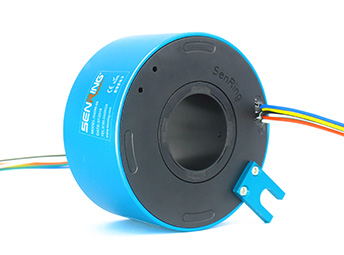

H4086 Series Through Bore Slip Ring

hole size 40mm ,OD 86mm

H4086 series is standard through hole slip ring , hole size 40mm(suitable for shaft≤40mm),OD 86mm。It can stably transmit 2~24 circuits [email protected] or 2~48 circuits [email protected] and applied to any devices where requires to transmit power and signals when 360 ro

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Support 2~48circuits power /signal(2A,N*2A),customized for more circuits or large current;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h4086 series H4086 Series Through Bore Slip Ring slip ring description
Drawing
h4086 series H4086 Series Through Bore Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H4086-02S 0 2 32 H4086-1010-08S 10 8 90.2
H4086-0210 2 0 32 H4086-1210-06S 12 6 90.2
H4086-03S 0 3 36 H4086-1410-04S 14 4 90.2
H4086-0310 3 0 36 H4086-1610-02S 16 2 90.2
H4086-06S 0 6 48 H4086-24S 0 24 112.4
H4086-0210-04S 2 4 48 H4086-0410-20S 4 20 112.4
H4086-0410-02S 4 2 48 H4086-0610-18S 6 18 112.4
H4086-0610 6 0 48 H4086-1210-12S 12 12 112.4
H4086-12S 0 12 68 H4086-1810-06S 18 6 112.4
H4086-0210-10S 2 10 68 H4086-2410 24 0 112.4
H4086-0310-09S 3 9 68 H4086-30S 0 30 134.6
H4086-0610-06S 6 6 68 H4086-0210-28S 2 28 134.6
H4086-0810-04S 8 4 68 H4086-0410-26S 4 26 134.6
H4086-1010-02S 10 2 68 H4086-0610-24S 6 24 134.6
H4086-1210 12 0 68 H4086-36S 0 36 156.8
H4086-18S 0 18 90.2 H4086-0410-32S 4 32 156.8
H4086-0210-16S 2 16 90.2 H4086-0610-30S 6 30 156.8
H4086-0410-14S 4 14 90.2 H4086-42S 0 42 179
H4086-0610-12S 6 12 90.2 H4086-0410-38S 4 38 179
H4086-0810-10S 8 10 90.2 H4086-48S 0 48 201.2

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h4086 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h4086 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 400RPM 30 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
