SENRING
Through hole slip ring

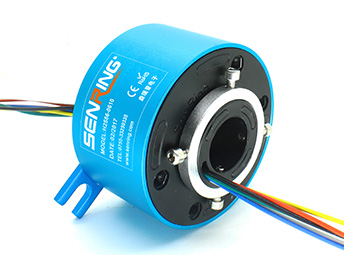

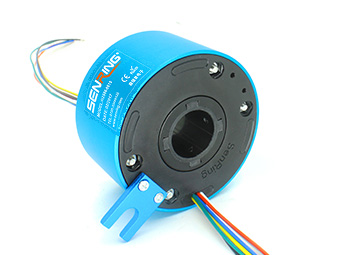

H2578 Series Through Bore Slip Ring

hole size 25.4mm ,OD 78mm

H2578 series is standard through hole slip ring , hole size 25.4mm(suitable for shaft≤25.4mm),OD 78mm。It can stably transmit 2~36 circuits power(10A,N*10A) or 2~120 circuits [email protected] and applied to any devices where requires to transmit power and signals

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Standard model supports 2~36 circuits [email protected](N*10A)) or 2~120 circuits [email protected],current and channels can be customized;
Can be customized to combine power/signal transmitting
Integrated structure design, easy installation.
Part no. description
h2578 series H2578 Series Through Bore Slip Ring slip ring description
Drawing
h2578 series H2578 Series Through Bore Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H2578-02S 0 2 32 H2578-1210-12S 12 12 120
H2578-0210 2 0 32 H2578-1810-06S 18 6 120
H2578-03S 0 3 36 H2578-2410 24 0 120
H2578-0310 3 0 36 H2578-30S 0 30 144
H2578-06S 0 6 48 H2578-0610-24S 6 24 144
H2578-0210-04S 2 4 48 H2578-1210-18S 12 18 144
H2578-0410-02S 4 2 48 H2578-1810-12S 18 12 144
H2578-0610 6 0 48 H2578-2410-06S 24 6 144
H2578-12S 0 12 72 H2578-3010 30 0 144
H2578-0210-10S 2 10 72 H2578-36S 0 36 168
H2578-0310-09S 3 9 72 H2578-0610-30S 6 30 168
H2578-0610-06S 6 6 72 H2578-1210-24S 12 24 168
H2578-0810-04S 8 4 72 H2578-3610 36 0 168
H2578-1010-02S 10 2 72 H2578-42S 0 42 192
H2578-1210 12 0 72 H2578-0610-36S 6 36 192
H2578-18S 0 18 96 H2578-1210-30S 12 30 192
H2578-0210-16S 2 16 96 H2578-48S 0 48 216
H2578-0410-14S 4 14 96 H2578-0610-42S 6 42 216
H2578-0610-12S 6 12 96 H2578-1010-38S 10 38 216
H2578-0810-10S 8 10 96 H2578-1210-36S 12 36 216
H2578-1010-08S 10 8 96 H2578-1810-30S 18 30 216
H2578-1210-06S 12 6 96 H2578-2410-24S 24 24 216
H2578-1410-04S 14 4 96 H2578-60S 0 60 264
H2578-1610-02S 16 2 96 H2578-0610-54S 6 54 264
H2578-24S 0 24 120 H2578-1010-50S 10 50 264
H2578-0410-20S 4 20 120 H2578-1210-48S 12 48 264
H2578-0610-08S 6 18 120 H2578-72S 0 72 312

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h2578 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h2578 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 400RPM 20 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
