SENRING
Through hole slip ring

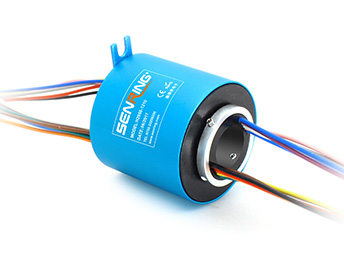

H2069 Series Through Bore Slip Ring

hole size 20mm, OD 69mm

H2069 series is standard through hole slip ring , hole size 20mm(suitable for shaft≤20mm),OD 69mm。It can stably transmit 2~24 circuits power@10A or 2~48 circuits signal@2A and applied to any devices where requires to transmit power and signals when 360 ro

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Standard model supports 2~24 circuits power@10A or 2~48 circuits signal@2A,current and channels can be customized;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.

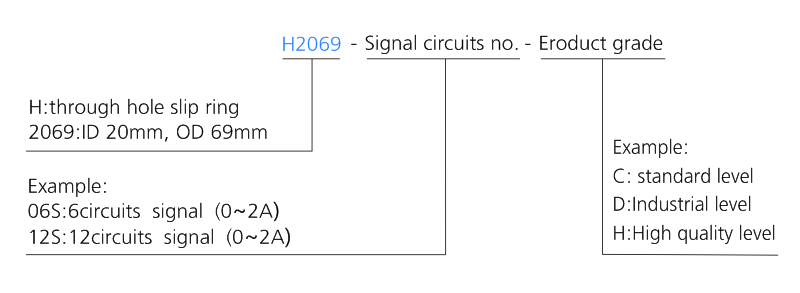

Part no. description
h2069 series H2069 Series Through Bore Slip Ring slip ring description

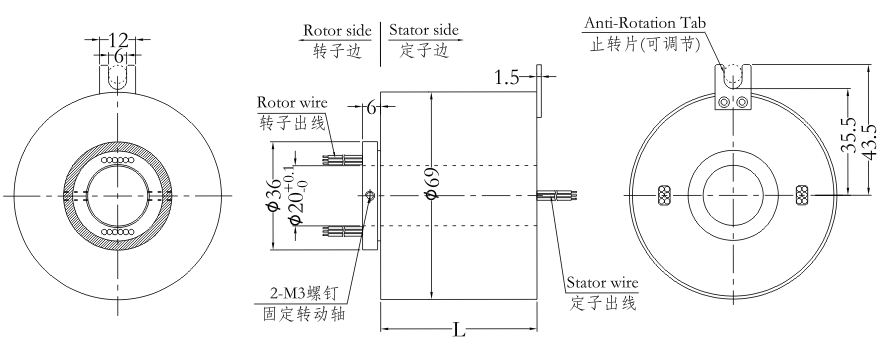

Drawing
h2069 series H2069 Series Through Bore Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
width="10%"10A signal or 0-5A 10A signal or 0-5A
H2069-02S 0 2 34 H2069-1010-08S 10 8 68.5
H2069-0210 2 0 34 H2069-1210 12 0 68.5
H2069-03S 0 3 34 H2069-1410-04S 14 4 68.5
H2069-0310 3 0 34 H2069-1610-02S 16 2 68.5
H2069-06S 0 6 34 H2069-24S 0 24 85.5
H2069-0210-04S 2 4 34 H2069-0410-20S 4 20 85.5
H2069-0410-02S 4 2 34 H2069-0610-18S 6 18 85.5
H2069-0610 6 0 34 H2069-1210-12S 12 12 85.5
H2069-12S 0 12 52 H2069-1810-06S 18 6 85.5
H2069-0210-10S 2 10 52 H2069-2410 24 0 85.5
H2069-0310-09S 3 9 52 H2069-30S 0 30 101
H2069-0610-06S 6 6 52 H2069-0210-28S 2 28 101
H2069-0810-04S 8 4 52 H2069-0410-26S 4 26 101
H2069-1010-02S 10 2 52 H2069-0610-24S 6 24 101
H2069-1210 12 0 52 H2069-36S 0 36 119
H2069-18S 0 18 68.5 H2069-0410-32S 4 32 119
H2069-0210-16S 2 16 68.5 H2069-0610-30S 6 30 119
H2069-0410-14S 4 14 68.4 H2069-42S 0 42 137
H2069-0610-12S 6 12 68.5 H2069-0410-38S 4 38 137
H2069-0810-10S 8 10 68.5 H2069-48S 0 48 153

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h2069 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~440VAC/VDC 0~440VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical Noise < 0.01Ω
h2069 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
