Through hole slip ring

H3899 Series(Hollow Shaft)Through Hole Slip Ring

hole size 38.1mm, OD 99mm

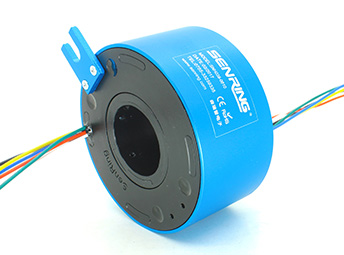

Senring H3899 series through bore slip ring,hole size 38.1mm(suitable for shaft≤38.1mm),OD 99mm,housing material can be use plastic, aluminum alloy or stainless,it is ingergal precision slip ring。It can stably transmit 2~36 circuits power@10A or 2~72 cir

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Max rotating speed : 400RPM,800RPM,1200RPM(optional);
Standard model supports 1-24 circuits power(0~10A) or 1~72 circuits signal(0~5A),current and channels can be customized;
High reliability, long working life;
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h3899 series H3899 Series(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h3899 series H3899 Series(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H3899-02S 0 2 32 H3899-1210-12S 12 12 120
H3899-0210 2 0 32 H3899-1810-06S 18 6 120
H3899-03S 0 3 36 H3899-2410 24 0 120
H3899-0310 3 0 36 H3899-30S 0 30 144
H3899-06S 0 6 48 H3899-0610-24S 6 24 144
H3899-0210-04S 2 4 48 H3899-1210-18S 12 18 144
H3899-0410-02S 4 2 48 H3899-1810-12S 18 12 144
H3899-0610 6 0 48 H3899-2410-06S 24 6 144
H3899-12S 0 12 72 H3899-3010 30 0 144
H3899-0210-10S 2 10 72 H3899-36S 0 36 168
H3899-0310-09S 3 9 72 H3899-0610-30S 6 30 168
H3899-0610-06S 6 6 72 H3899-1210-24S 12 24 168
H3899-0810-04S 8 4 72 H3899-3610 36 0 168
H3899-1010-02S 10 2 72 H3899-42S 0 42 192
H3899-1210 12 0 72 H3899-0610-36S 6 36 192
H3899-18S 0 18 96 H3899-1210-30S 12 30 192
H3899-0210-16S 2 16 96 H3899-48S 0 48 216
H3899-0410-14S 4 14 96 H3899-0610-42S 6 42 216
H3899-0610-12S 6 12 96 H3899-1010-38S 10 38 216
H3899-0810-10S 8 10 96 H3899-1210-36S 12 36 216
H3899-1010-08S 10 8 96 H3899-1810-30S 18 30 216
H3899-1210-06S 12 6 96 H3899-2410-24S 24 24 216
H3899-1410-04S 14 4 96 H3899-60S 0 60 264
H3899-1610-02S 16 2 96 H3899-0610-54S 6 54 264
H3899-24S 0 24 120 H3899-1010-50S 10 50 264
H3899-0410-20S 4 20 120 H3899-1210-48S 12 48 264
H3899-0610-08S 6 18 120 H3899-72S 0 72 312

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h3899 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
h3899 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
