Through hole slip ring

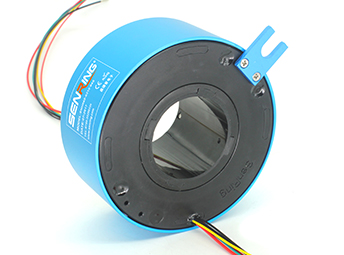

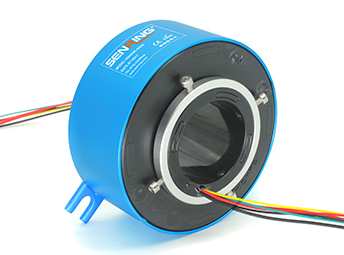

H50130 Series Through Bore Slip Ring

hole size 50mm, OD 130mm

H50130 series is standard through hole slip ring , hole size 50mm(suitable for shaft ≤50mm),OD 130mm。It can stably transmit 2~60 circuits [email protected] or 2~144 circuits [email protected] and applied to any devices where requires to transmit power and signals when 36

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
support 1~144ircuits power /signal,current and channels can be customized;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h50130 series H50130 Series Through Bore Slip Ring slip ring description
Drawing
h50130 series H50130 Series Through Bore Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H50130-02S 0 2 36 H50130-48S 0 48 220
H50130-0210 2 0 36 H50130-0610-42S 6 42 220
H50130-03S 0 3 40 H50130-1210-36S 12 36 220
H50130-0310 3 0 40 H50130-1810-30S 18 30 220
H50130-06S 0 6 52 H50130-P2410-24S 24 24 220
H50130-0210-04S 2 04 52 H50130-4810 48 0 220
H50130-0410-02S 4 2 52 H50130-60S 0 60 268
H50130-0610 6 0 52 H50130-0610-54S 6 54 268
H50130-12S 0 12 76 H50130-0910-51S 9 51 268
H50130-0210-10S 2 10 76 H50130-1210-48S 12 48 268
H50130-0310-09S 3 9 76 H50130-2410-36S 24 36 268
H50130-0610-06S 6 6 76 H50130-72S 0 72 316
H50130-0810-04S 8 4 76 H50130-1210-60S 12 60 316
H50130-1010-02S 10 2 76 H50130-2410-48S 24 48 316
H50130-1210 12 0 76 H50130-3610-36S 36 36 316
H50130-18S 0 8 100 H50130-84S 0 84 364
H50130-0210-16S 2 16 100 H50130-1210-72S 12 72 364
H50130-0410-14S 4 14 100 H50130-2410-60S 24 60 364
H50130-0610-12S 6 12 100 H50130-3610-48s 36 48 364
H50130-0810-10S 8 10 100 H50130-96S 0 96 412
H50130-1010-08S 10 8 100 H50130-1210-84S 12 84 412
H50130-1210-06S 12 6 100 H50130-2410-72S 24 72 412
H50130-1410-04S 14 4 100 H50130-3610-60S 36 60 412
H50130-1610-02S 16 2 100 H50130-4210-54S 42 54 412
H50130-24S 0 24 124 H50130-108S 0 108 460
H50130-0410-20S 4 20 124 H50130-1210-96S 12 96 460
H50130-0610-18S 6 18 124 H50130-2410-84S 24 84 460
H50130-1210-12S 12 12 124 H50130-3610-72S 36 72 460
H50130-1810-06S 18 6 124 H50130-120S 0 120 508
H50130-2410 24 0 124 H50130-1210-108S 12 108 508/td>
H50130-30S 0 30 148 H50130-2410-96S 24 96 508
H50130-0610-24S 6 24 148 H50130-3610-84S 36 84 508
H50130-1210-18S 12 18 148 H50130-4810-12S 48 12 508
H50130-1810-12S 18 12 148 H50130-132S 0 132 556
H50130-2410-06S 24 6 148 H50130-1210-120S 12 120 556
H50130-3010 30 10 148 H50130-2410-108S 24 108 556
H50130-36S 0 36 172 H50130-3610-96S 36 96 556
H50130-0610-30S 6 30 172 H50130-4810-14S 48 14 556
H50130-1210-24S 12 24 172 H50130-144S 0 144 604
H50130-3610 36 0 172 H50130-1210-132S 12 132 604
H50130-42S 0 42 196 H50130-2410-120S 24 120 604
H50130-0610-36S 6 36 196 H50130-3610-108S 36 108 604
H50130-1210-30S 12 30 196 H50130-4810-96S 48 96 604
H50130-4210 42 0 196 H50130-6010-84S 60 84 604

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h50130 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h50130 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 400RPM 20 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
