SENRING
Through hole slip ring

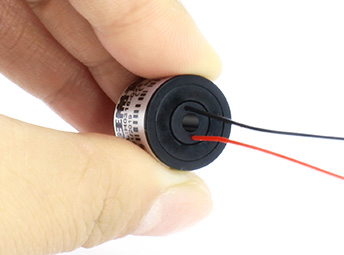

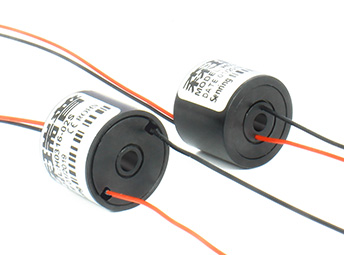

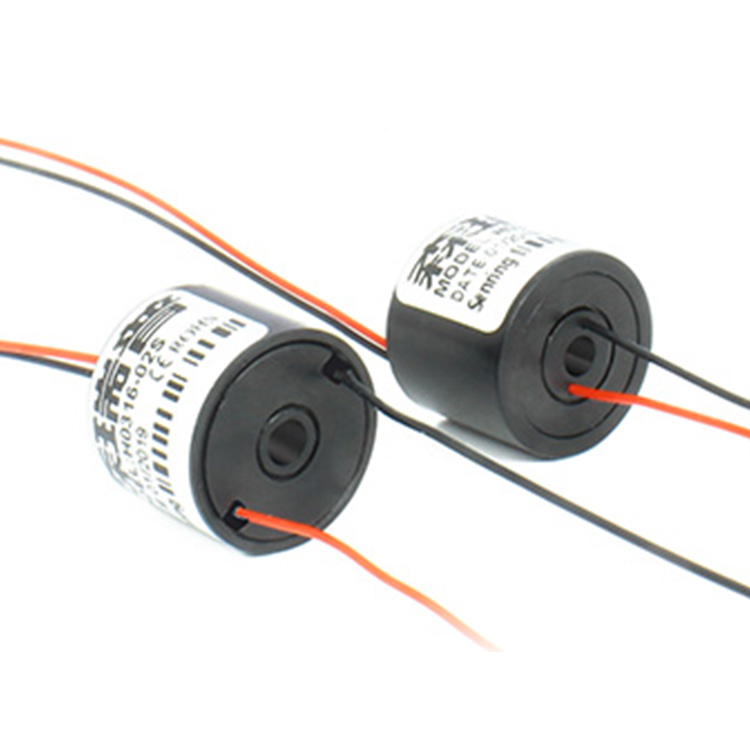

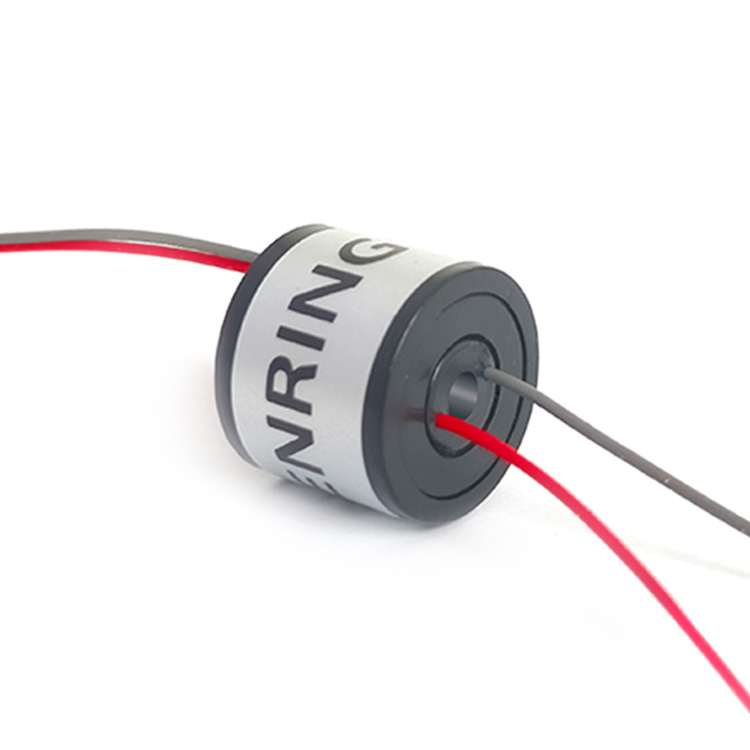

H0316 Series Mini Through Hole Slip Ring

hole size: 3mm ,OD: 16mm

H0317 series with through hole 3mm , OD 16mm , suitable for rotating application which requires a through hole ≤3mm

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Standard current 0~2A/signal
Circuits 2~8 optional(more circuits can be customized)
Combined transmit video signals, data, signals, power current
Integrated structure design, easy installation.

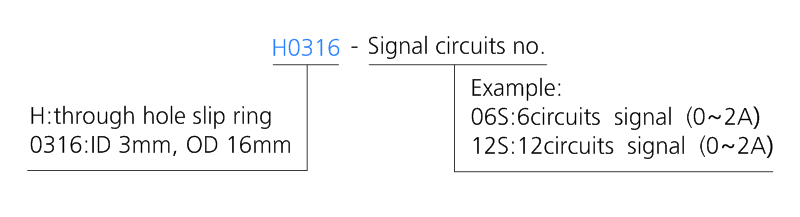

Part no. description
h0316 series H0316 Series Mini Through Hole Slip Ring slip ring description

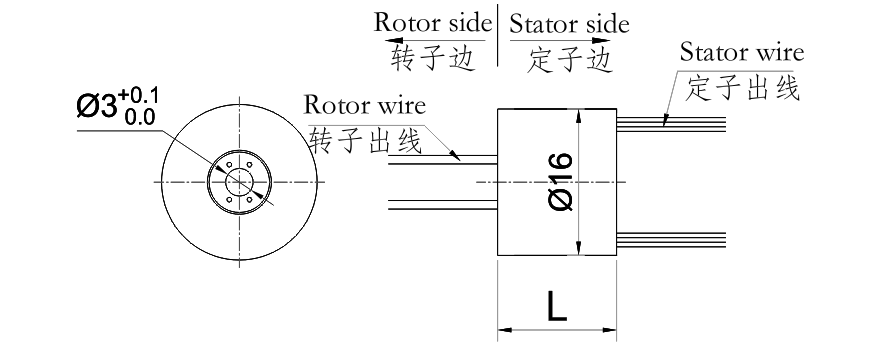

Drawing
h0316 series H0316 Series Mini Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits ( signal or 0-2A) Length L(mm)
H0316-02S 2 13
H0316-03S 3 13
H0316-04S 4 13
H0316-06S 6 21
H0316-08S 8 21

* Remark: circuits can be combined in parallel for bigger current, N circuits of 2A to get N*2A, such as 2 circuits of 2A in parallel for 4A use.

Technical Specification of h0316 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Insolution Resistance ≥500MΩ/500VDC ≥500MΩ/500VDC
Lead wire Spec. AWG28# Silver-plated teflon AWG28# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical Noise < 0.01Ω
h0316 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
