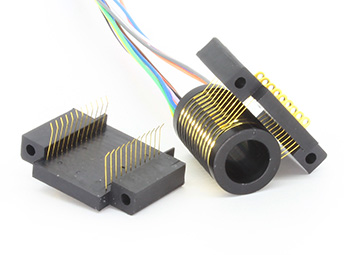

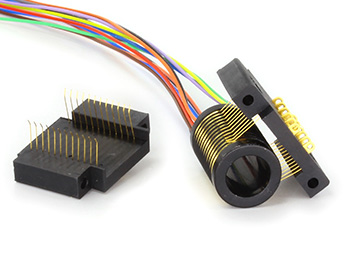

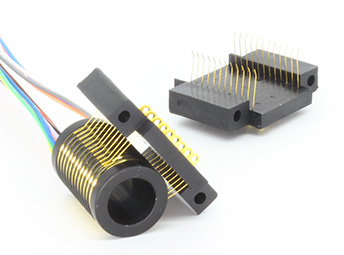

S010-12 Series 12 Circuits Through Hole Separate Slip Ring(Hole Size 9.55mm)

12 circuits,OD 14.3mm,hole size 9.55mm;

SenRing SNS010-12 series 12 circuits miniature separate slip ring,with small size,housing length 23mm,OD 14.3mm,brush length 30mm,height 8.13mm,hole size 9.55mm,suitable for some special situation instead of SenRing Capsule slip ring.Applied to any devices to conduct or transmit a signal when 360° rotating which can improve machine performance, simplify system operation and avoid damage to wire hanging in moving parts of the machine.With advantage of small size in barrel shaped stator,while installation is more complicated than standdard through hole slip rings and capsule slip rings.

Features
Rotor and stator can be installed separately;
Saving installation space and weight;
Small size,OD 14.3mm,length 13.2mm,hole size 9.55mm;
Both copper ring and terminal are gold-plated or tin plated make sure excellent electrical conductivity;
V-groove gold-plated design ensure high resistance to oxidation and wear;
Can be customized with higher insulation (OD:0.110mm) and 90 ° V-groove ring;
Typical application:Instruments, monitors and avionics, test and measurement.
S010-12 series 12 circuits through hole separate slip ring
Drawing
S010-12 series 12 circuits through hole separate slip ring
Technical Specification of the slip ring
Mechanical Data Electrical Data
spec data spec data
Circuits 12 circuits power signal
Rotating speed 250RPM voltage range 0∼250VAC/VDC 0∼250VAC/VDC
working temp. -40℃∼80℃ insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
work humidity 0~85%RH lead wire spec. AWG30# Silver-plated teflon AWG30# Silver-plated teflon
contact material precious metal:gold-gold lead wire length standard 150mm(can be customized)
material RoHS compliant Dielectric Strength [email protected],60s
CE certificate Yes Electrical noise < 0.01Ω
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent

Remark:"1" : the first wire (ring 1#)starts from rotor side , such as S010-12 wire color sequence: BLK/BRN/RED/ORG/YLW/GRN, 24 color wires as one group , if more than 24wires, repeat as sequence , use number tube to tell group 1#, 2#....
