SENRING
High Speed Slip Rings

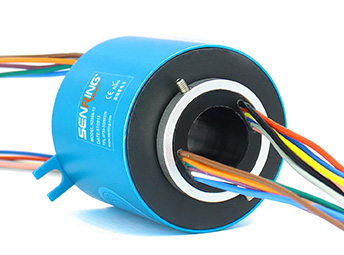

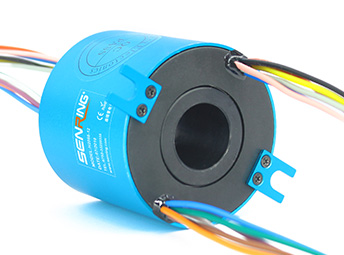

G2056 series High Speed slip ring

Max speed 1500RPM,hole size ranges from 0~20mm,6~12 circuits 10A current.

SENRING G2056 series High Speed slip ring,hole size 20mm,OD 56mm, max speed 1500RPM.Developed specially for high speed rotation equipment.With patented technology,Germany imports key materials ensure high wear-resistant and conductive compare the traditio

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Max speed 1500RPM
Hole size 20mm,OD 56mm,hole size customizing available;
Adopting import permanent lubrication bearings make sure high wear resistance, life-free maintenance;
Adopting Germany imports key materials and high quality gold plated ring make sure reliable power supply and signal transmission;
Low torque, low loss, high stability, long working life.
Part no. description
g2056 series G2056 series High Speed slip ring slip ring description
Drawing
g2056 series G2056 series High Speed slip ring slip ring Drawing
Standard model list
Model circuits(10A) Length L(mm)
G2056-06 6 circuits 34
G2056-12 12 circuits 52

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SENRING salesman if you need customize the channel no. of Ethernet,power and signal,or mix other signals.

Technical Specification of g2056 series slip ring
Mechanical Data
spec data
Rotating speed 1500RPM
working temp. -30℃∼80℃
work humidity 0~85%RH
contact material SENRING Slip Rings Grade Table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
Electrical Data
spec data
voltage range 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
certificate RoHS、CE
IP grade IP51
