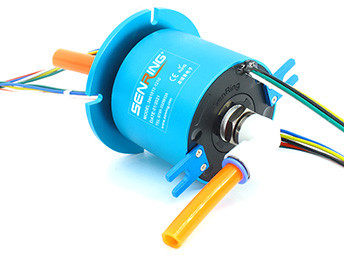

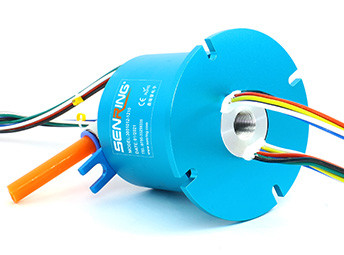

3001012 Series G3/8" 1-Passage Rotary Unions

1-Passage+2~96 Circuits Electrical,support 1 G3/8" port for 10~12mm pipes

SENRING 1-passages rotary unions 3001012 series,support G3/8" port for 10~12mm pipes,can transfer various mediums including air,steam,vacuum,air,steam,vacuum,Coolant,MQL,Vacuum,etc when 360° rotating, Advantages : compact size, light weight , low torque.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features: Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.;; 360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.; Max. Pressure(s):10Mpa (vacuum: -1.5kPa, higher Pressure can be customized)；; Standard version with flange mounting,can be customized with hollow shaft mounting;; Support 1 G3/8" port for 10~12mm pipes;

Part no. description

3001012 series 3001012 Series G3/8" 1-Passage Rotary Unions slip ring description

Drawing

Standard model list

Model List	Passages(Gas)	Power Circuits(10A)	Signal Circuits(2A)	Length L(mm)
3001012-02S	1 passage	0	2	32
3001012-0210	1 passage	2	0	32
3001012-03S	1 passage	0	3	36
3001012-0310	1 passage	3	0	36
3001012-06S	1 passage	0	6	46
3001012-0210-04S	1 passage	2	4	46
3001012-0410-02S	1 passage	4	2	46
3001012-0610	1 passage	6	0	46
3001012-12S	1 passage	0	12	68
3001012-0210-10S	1 passage	2	10	68
3001012-0310-09S	1 passage	3	9	68
3001012-0610-06S	1 passage	6	6	68
3001012-0810-04S	1 passage	8	4	68
3001012-1010-02S	1 passage	10	2	72
3001012-1210	1 passage	12	0	72
3001012-18S	1 passage	0	18	96
3001012-0210-16S	1 passage	2	16	96
3001012-0410-14S	1 passage	4	14	96
3001012-0610-12S	1 passage	6	12	96
3001012-0810-10S	1 passage	8	10	96
3001012-1010-08S	1 passage	10	8	96
3001012-1210-06S	1 passage	12	6	96
3001012-1410-04S	1 passage	14	4	96
3001012-1610-02S	1 passage	16	2	96
3001012-24S	1 passage	0	24	120
3001012-0410-20S	1 passage	4	20	120
3001012-0610-18S	1 passage	6	18	120
3001012-1210-12S	1 passage	12	12	120
3001012-1810-06S	1 passage	18	6	120
3001012-2410	1 passage	24	0	120
3001012-30S	1 passage	0	30	144
3001012-0610-24S	1 passage	6	24	144
3001012-1210-18S	1 passage	12	18	144
3001012-1810-12S	1 passage	18	12	144
3001012-2410-06S	1 passage	24	6	144
3001012-3010	1 passage	30	0	144
3001012-36S	1 passage	0	36	168
3001012-0610-30S	1 passage	6	30	168
3001012-1210-24S	1 passage	12	24	168
3001012-3610	1 passage	36	0	168
3001012-42S	1 passage	0	42	192
3001012-0610-36S	1 passage	6	36	192
3001012-1210-30S	1 passage	12	30	192
3001012-48S	1 passage	0	48	216
3001012-0610-42S	1 passage	6	42	216
3001012-1010-38S	1 passage	10	38	216
3001012-1210-36S	1 passage	12	36	216
3001012-1810-30S	1 passage	18	30	216
3001012-2410-24S	1 passage	24	24	216
3001012-60S	1 passage	0	60	264
3001012-0610-54S	1 passage	6	54	264
3001012-1010-50S	1 passage	10	50	264
3001012-72S	1 passage	0	72	312
3001012-96S	1 passage	0	96	408

Technical Specification of 3001012 series slip ring

Passages(Gas)	1 passage
Pipe Size	12mm pipe, G3/8" port
Mechanical Data
spec.	data
Working life	20millions for ref(depends on working conditions)
Max. Operating Speed	250RPM continously, 1000RPM intermittently
Working temp.	-30°C~80°C
Work humidity	0~85% RH
Contact Materia	Precious Metal
Housing Material	aluminum alloy
IP Grade	IP51

Max. Operating Pressure	Positive Pressure 10Mpa, Vacuum -90kPa
torque	＞0.18N.m reference only, different specfication have different torque
Electrical Data
spec.	data
	Power	Signal
Voltage range	0~440VAC/VDC	0~440VAC/VDC
Insolution resistance	<500MΩ/300VDC	<500MΩ/300VDC
Lead wire spec.	AWG17# Silver-plated teflon wire	AWG22# Silver-plated teflon wire
Lead wire length	standard 250mm（can be customized）
Insolution resistance	500VAC@50Hz,6s
Electrical noise	<0.01Ω
