Pneumatic Rotary Union(+Electric)

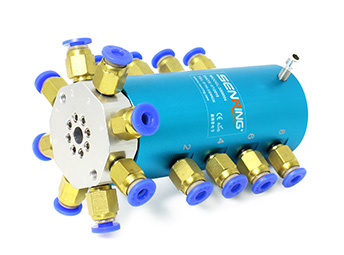

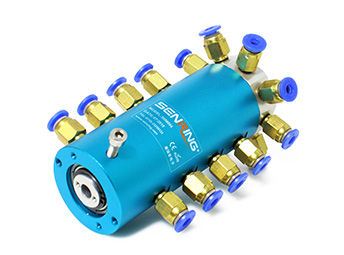

3008004 Series M5 8 Passage Pnuematic/+Electric Hybridry Rotary Unions

8 Passage+6~36 Circuits Electrical,support 8 M5 port for 4mm pipes

SENRING 3008004 series 8 passages rotary unions provides a positive seal between stationary piping and a rotating cylinder and is applied to air,steam,vacuum,mixture of gases,etc service.Available in 3008004,3008004-06S,3008004-12S,3008004-24S,3008004-36S

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 8 M5 port for 4mm pipes;
Part no. description
3008004 series 3008004 Series M5 8 Passage Pnuematic/+Electric Hybridry Rotary Unions slip ring description
Drawing
3008004 series 3008004 Series M5 8 Passage Pnuematic/+Electric Hybridry Rotary Unions slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3008004 8 passages M5 4~6mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Signal Circuits(2A) Length L(mm)
3008004-06S 8 passages M5 4~6mm 6 14
3008004-12S 8 passages M5 4~6mm 12 21
3008004-24S 8 passages M5 4~6mm 24 35
3008004-36S 8 passages M5 4~6mm 36 52
Technical Specification of 3008004 series slip ring
Passages(Gas) 8 passages
Pipe Size 4mm pipe, M5 port
Mechanical Data
spec. data
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating
Pressure
Positive Pressure 1Mpa, Vacuum -1.5kPa
torque <0.8N.m
Electrical Data
spec. data
Power Signal
Voltage range 0~240VAC/VDC 0~240VAC/VDC
Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire spec. AWG26# Silver-plated teflon wire AWG26# Silver-plated teflon wire
Lead wire length standard 250mm(can be customized)
Insolution resistance [email protected],6s
Electrical noise <0.01Ω
