Pneumatic Rotary Union(+Electric)

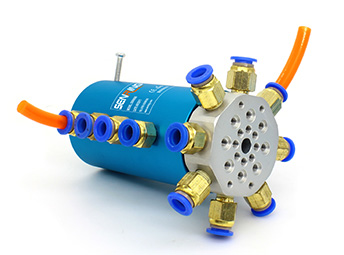

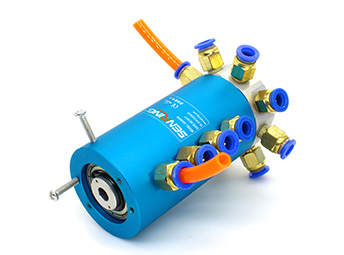

3008012 Series G3/8 8 Passage Pneumatic & Electric Rotary Union

8 Passage,Passage Size G3/8",Support 10~12mm Pipes,Can be Combine To Transfer 6~56 Circuits Electrical Power/Signal

SENRING 8 passages Pneumatic & Electric Rotary Union 3008012 series with standard G3/8" port for 10~12mm pipes,can transfer pneumatic/ from static part to rotating part of the devices suitable to transfer various mediums including compressed walt,air,ste

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 8 G3/8" port for 10~12mm pipes;
Part no. description
3008012 series 3008012 Series G3/8 8 Passage Pneumatic & Electric Rotary Union slip ring description
Drawing
3008012 series 3008012 Series G3/8 8 Passage Pneumatic & Electric Rotary Union slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3008012 8 passages G3/8" 10~12mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Signal Circuits(2A) Length L(mm)
3008012-06S 8 passages G3/8" 10~12mm 6 14
3008012-12S 8 passages G3/8" 10~12mm 12 21
3008012-24S 8 passages G3/8" 10~12mm 24 35
3008012-36S 8 passages G3/8" 10~12mm 36 52.3
3008012-56S 8 passages G3/8" 10~12mm 56 82
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Power Circuits(10A) Signal Circuits(2A) Length L(mm)
3008012-06S 8 Passages G3/8" 10~12mm 0 6 48
3008012-0610 8 Passages G3/8" 10~12mm 6 0 48
3008012-12S 8 Passages G3/8" 10~12mm 0 12 72
3008012-0610-06S 8 Passages G3/8" 10~12mm 6 6 72
3008012-1210 8 Passages G3/8" 10~12mm 12 0 72
3008012-0610-12S 8 Passages G3/8" 10~12mm 6 12 96
3008012-1210-06S 8 Passages G3/8" 10~12mm 12 6 96
3008012-18S 8 Passages G3/8" 10~12mm 0 18 96
3008012-1810 8 Passages G3/8" 10~12mm 18 0 96
3008012-0610-18S 8 Passages G3/8" 10~12mm 6 18 120
3008012-24S 8 Passages G3/8" 10~12mm 0 24 120
3008012-2410 8 Passages G3/8" 10~12mm 24 0 120
3008012-36S 8 Passages G3/8" 10~12mm 0 36 168
3008012-1210-24S 8 Passages G3/8" 10~12mm 12 24 168
3008012-3610 8 Passages G3/8" 10~12mm 36 0 168
3008012-48S 8 Passages G3/8" 10~12mm 0 48 216
3008012-1210-36S 8 Passages G3/8" 10~12mm 12 36 216
3008012-4810 8 Passages G3/8" 10~12mm 48 0 216
3008012-60S 8 Passages G3/8" 10~12mm 0 60 264
3008012-1210-48S 8 Passages G3/8" 10~12mm 12 48 264
3008012-72S 8 Passages G3/8" 10~12mm 0 72 312
3008012-2410-48S 8 Passages G3/8" 10~12mm 24 48 312
3008012-84S 8 Passages G3/8" 10~12mm 0 84 360°
3008012-2410-60S 8 Passages G3/8" 10~12mm 20 60 360°
3008012-96S 8 Passages G3/8" 10~12mm 0 96 408
3008012-108S 8 Passages G3/8" 10~12mm 0 108 456
3008012-120S 8 Passages G3/8" 10~12mm 0 120 504
Technical Specification of 3008012 series slip ring
Rotary Unions & Joints Spec.
Passages(Gas) 8 passages Max. Operating Pressure Positive Pressure 1Mpa, Vacuum -1.5kPa
Pipe Size 10~12mm pipe, G3/8" Port torque <0.8N.m
Mechanical Data Electrical Data
spec. data spec. data
Working life 20millions for ref(depends on working conditions) Power Signal
Max. Operating Speed 250RPM continously, 1000RPM intermittently Voltage range 0~440VAC/VDC 0~440VAC/VDC
Working temp. -30°C~80°C Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Work humidity 0~85% RH Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Contact Materia Precious Metal Lead wire length standard 250mm(can be customized)
Housing Material aluminum alloy Insolution resistance [email protected],6s
IP Grade IP51 Electrical noise <0.01Ω
