Pneumatic Rotary Union(+Electric)

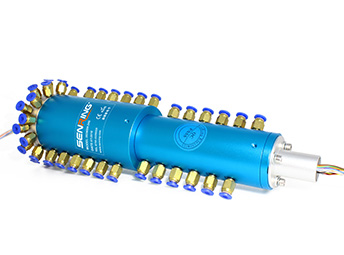

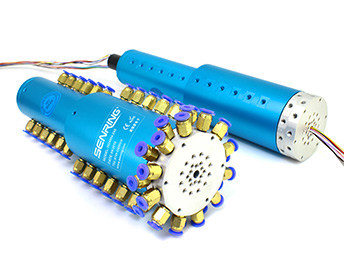

3024004 Series M5 24 Passage Pnuematic/+Electric Hybridry Rotary Unions

24 Passage+6~36 Circuits Electrical,support 24 M5 port for 4mm pipes

SENRING 3024004 series 24 passages rotary unions provides a positive seal between stationary piping and a rotating cylinder and is applied to compressed air,steam,vacuum..etc service.Available in 3024004,3024004-06S,3024004-12S,3024004-24S,3024004-36S mod

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 24 M5 port for 4mm pipes;
Part no. description
3024004 series 3024004 Series M5 24 Passage Pnuematic/+Electric Hybridry Rotary Unions slip ring description
Drawing
3024004 series 3024004 Series M5 24 Passage Pnuematic/+Electric Hybridry Rotary Unions slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3024004 24 passages M5 4~6mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Signal Circuits(2A) Length L(mm)
3024004-06S 24 passages M5 4~6mm 6 14
3024004-12S 24 passages M5 4~6mm 12 21
3024004-24S 24 passages M5 4~6mm 24 35
3024004-36S 24 passages M5 4~6mm 36 52
Technical Specification of 3024004 series slip ring
Passages(Gas) 24 passages
Pipe Size 4mm pipe, M5 port
Mechanical Data
spec. data
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating
Pressure
Positive Pressure 1Mpa, Vacuum -1.5kPa
torque <2.4N.m
Electrical Data
spec. data
Power Signal
Voltage range 0~240VAC/VDC 0~240VAC/VDC
Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire spec. AWG26# Silver-plated teflon wire AWG26# Silver-plated teflon wire
Lead wire length standard 250mm(can be customized)
Insolution resistance [email protected],6s
Electrical noise <0.01Ω
